Name: Powerline Tools Self-Moving Traction Machine For OPGW With Gasoline Engine
Brand: Wuxi Hanyu power equipment co.,ltd
SKU: BZZCS350
Availability: InStock

MOQ:	10set
Price:	Negotiable
Standard Packaging:	Container
Delivery Period:	15-35days
Payment Method:	L/C, T/T
Supply Capacity:	1000sets/month.

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

HANYU

Certification

ISO9001

Model Number

BZZCS350

Type:

Self-Moving Traction Machine For OPGW

Horizontal Pull (N):

350

Weight (kg):

46.5

Running Speed (m/min):

Remote Control Linear Distance(m):

300~500

Maximum Creeping Angle (°):

Highlight:

gasoline engine OPGW traction machine

self-moving powerline tools

OPGW cable traction equipment

Product Description

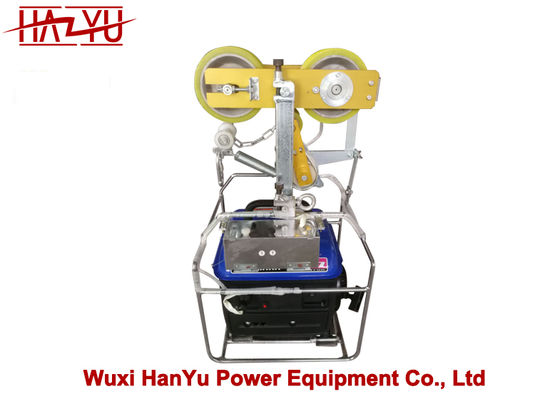

Powerline Tools Self-Moving Traction Machine For OPGW With Gasoline Engine

Description
The self moving traction machine is used to deliver guide rope and double pulley rollers from one steel tower to another.
It is always used to spread the optical power ground wire abbreviated as OPGW. Also, it is able to replace the old conductor.
Model		BZZCS350
Block passed diameter range	mm	φ9-φ13
Maximum creeping angle	°	31
Gasoline engine		YAMAHAET950
Driving dynamo type		100YYJ140-3(140W)
Remote control linear distance	m	300~500
Dimension	mm	422x480x758
Running speed	m/min	17
Horizontal pull	N	350
Weight	kg	46.5
Remarks
We have developed whole set of machines and tools for OPGW line installation
Advantages
Self driving by gasoline engine Electric motor system. Automatic brake system for emergency stop Remote control system for controlling the machine on overhead line. Special Mechanical system for preventing reverse driving of machine. Easy operation

Powerline Tools Self-Moving Traction Machine For OPGW With Gasoline Engine 0
