Name: 16kN Lifting Tirfor Hand Winch Manual Tirfor Winch 25kN Pulling
Brand: Wuxi Hanyu power equipment co.,ltd
SKU: TFX-16
Availability: InStock

MOQ:	10pieces
Price:	Negotiable
Standard Packaging:	Container
Delivery Period:	15-35days
Payment Method:	L/C, T/T
Supply Capacity:	2000pieces/month.

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

HANYU

Certification

ISO9001

Model Number

TFX-16

Type:

Rope Pulling Winch Tirfor Hoist

Pulling Capacity:

25kN

Lifting Capacity:

16kN

Rope Length:

20m

Mass:

12kg

Rope Diameter:

11mm

Highlight:

tirfor hand winch manual

manual tirfor winch 25kn

16kn tirfor hand winch

Product Description

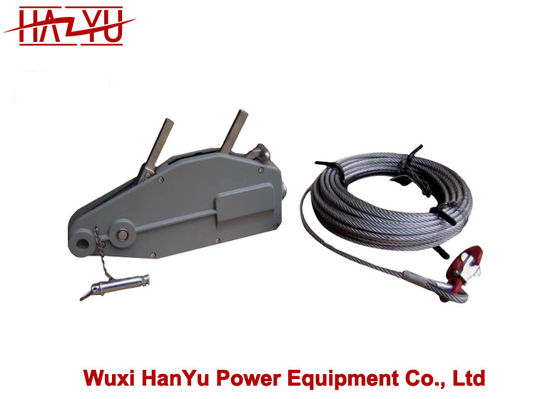

Powerline Tools Rope Pulling Winch Tirfor Hoist Lifting Capacity 16kN

TYTFX Rope Pulling Hoist

This is designed to pull or lift ropes, conductors or loads.

Model	Lifting capacity	Pulling capacity	Rope diameter	Rope length	Mass
Model	(kN)	(kN)	(mm)	(m)	(kg)
TFX-8	8	12.5	8	20	6
TFX-10	10	15	8	20	6
TFX-16	16	25	11	20	12
TFX-32	32	50	16	10	23
TFX-54	54	80	20	10	45

ADVANTAGES

Simple structure and powerful function

Fast and easy installation, Simple to feed in or remove the wire rope, Continuous operation without snatching, Changeover from forward to reverse operation by transferring the operating handle from one lever to another, Works in any position horizontal, vertical or angled.

The length of the wire rope is not limited

Standard length of steel wire rope is 20 meters but custom length s available on request.

Safe and reliable

Each Hoist is tested to 1.5 times of the rated capacity. The jaws and connecting axle have been quenched, and the modules have been electroplated. The performance of the products will not be affected after the four-fold strength test.

Increase the nominal capacity with multiple sheave blocks

The rated load of the machine can be increased with the snatch block and the traction direction of the machine can be changed by the fixed snatch block or fixed object.

Safety device to prevent overloading

Each Hoist has a built in shear pin which is designed to break at approximately 25% above the working load limit, this prevents excessive over loading. The pins can be replaced without releasing the load. two spare pin s are located In the carry handle.

Load positioning accurate to mm

Whether lifting or lowering, the load is permanently controlled with the utmost precision; when operation st load is spread between the two jaw blocks.

16kN Lifting Tirfor Hand Winch Manual Tirfor Winch 25kN Pulling 0
