Feature
The wire rope grip is made of alloy steel.
The structure is compact, which is light, and portable.
Resistance is strong, the bite is high, not easy to slip and deform.
The wire puller is machined and heat treated for excellent durability.
The clamp mouth is equipped with an anti-chip safety device.
With delicate and smooth tongs, minimal damage to the lead.

WLL	2000KG
Applicable wire diameter	4-22mm/0.2-0.9inch
Rated load	20KN
Use range	4-22mm standard transmission and distribution aluminum wire, steel core wire, insulated wire.
Max load	2Ton/4409 Lbs
Weight	1.6kg
Package	Paper Box

The cable grips pulling are made of alloy steel, the structure is compact and strong, special heat treatment, durable, stable, and high strength.
With strong resistance and high bite, not easy to slip and deform. It can adjust the overhead power lines, which can solve the problem of sagging and tightening them.
Applicable wire diameter 4-22mm, Max Load 2 Ton. If you have any questions about our products, please feel free to contact us.
The jaw with an anti-chip safety device, ensures the safety and the jumper. With delicate and smooth tongs, minimal damage to the lead.
For all kinds of steel cables apply to electric power, the operation of industry and agriculture, and the tightening of the rope line.
Made of alloy steel, strong and durable
High occlusion, strong clamping performance, can grip wire tightly without damaging it.
The swing latch is designed to help hold cable in the jaw.
Suitable for gripping steel strand, aluminium cable steel reinforced, steel wire rope, etc.

0.5 Ton Applicable cable size: 1-10mm/0.04-0.4inch, maximum safe load: 0.5 Ton / 1102 pounds;
1 Ton Applicable cable size: 2.5-16mm/0.1-0.6inch, maximum safe load: 1 Ton / 2204 pounds;
2 Ton Applicable cable size: 4-22mm/0.15-0.8inch, maximum safe load: 2 Ton / 4409 pounds;
3 Ton Applicable cable size: 16-32mm/0.63-1.26inch, maximum safe load: 3 Ton / 6613 pounds.

Use of a wire grip cable puller allows for any slack to be removed quickly and easily and creates a more structurally sound build than manually tightening.

2Ton 4409Lbs Cable Puller Clamp Cable Grip Steel Wire Puller 0

Tags:

power line tools,

powerline machine tools,

power line tools and equipment

16kN Lifting Tirfor Hand Winch Manual Tirfor Winch 25kN Pulling

Contact Now

1000Hz/1500Hz Analog Tone Generator Tone And Probe Tracing Kit

Contact Now

Pro3000F Filtered Probe Analog Tone Generator Probe Tracing Kit Network

Contact Now

10kN Cable Puller Tool Cable Grip Powerline Tools Multifunctional

Contact Now

2000kg Cable Grip Rated Load 20kN Metal Cable Puller Power Line Tools

Contact Now

20kN Self Tightening Pull Clamp Powerline Tools With Swing Latch General Clamp

Contact Now

IP54 Splash Proof Digital Caliper Tool 150mm Digital Vernier Caliper

Contact Now

PRODUCTS DETAILS

Products

Transmission Line Stringing Equipment

Overhead Line Stringing Equipment

Hydraulic Puller Tensioner

Anti Twisting Steel Wire Rope

Lineman Tools

Powerline Tools

Stringing Pulley

Suspension Ladder

Suspension Platform

Underground Cable Pulling Tools

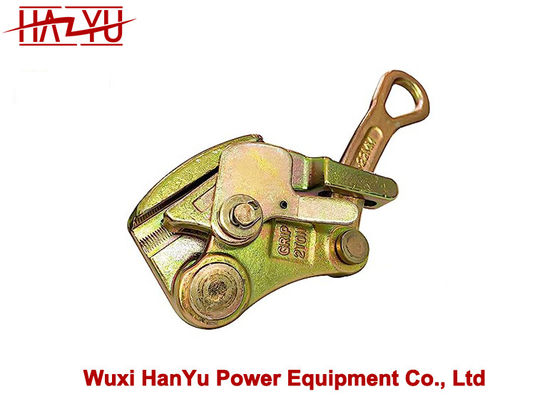

2Ton 4409Lbs Cable Puller Clamp Cable Grip Steel Wire Puller

MOQ:	30pieces
Price:	Negotiable
Standard Packaging:	Case
Delivery Period:	15-35days
Payment Method:	L/C, T/T
Supply Capacity:	10000pieces/month.

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

HANYU

Certification

ISO9001

Model Number

WLL

Type:

Cable Puller Tool/General Clamp

Rated Load:

20KN

Weight:

1.6kg

Applicable Wire Diameter:

4-22mm/0.2-0.9inch

Material:

Alloy Steel

Max Load:

2Ton/4409 Lbs

Minimum Order Quantity:

30pieces

Price:

Negotiable

Packaging Details:

Case

Delivery Time:

15-35days

Payment Terms:

L/C, T/T

Supply Ability:

10000pieces/month.

Highlight

4409Lbs Cable Puller Clamp

2Ton Cable Puller Clamp

Cable Grip Steel Wire Puller

Product Description

Powerline Tools Max Load 2Ton/4409 Lbs Cable Grip Steel Wire Puller General Clamp

Feature
The wire rope grip is made of alloy steel.
The structure is compact, which is light, and portable.
Resistance is strong, the bite is high, not easy to slip and deform.
The wire puller is machined and heat treated for excellent durability.
The clamp mouth is equipped with an anti-chip safety device.
With delicate and smooth tongs, minimal damage to the lead.

WLL	2000KG
Applicable wire diameter	4-22mm/0.2-0.9inch
Rated load	20KN
Use range	4-22mm standard transmission and distribution aluminum wire, steel core wire, insulated wire.
Max load	2Ton/4409 Lbs
Weight	1.6kg
Package	Paper Box

The cable grips pulling are made of alloy steel, the structure is compact and strong, special heat treatment, durable, stable, and high strength.
With strong resistance and high bite, not easy to slip and deform. It can adjust the overhead power lines, which can solve the problem of sagging and tightening them.
Applicable wire diameter 4-22mm, Max Load 2 Ton. If you have any questions about our products, please feel free to contact us.
The jaw with an anti-chip safety device, ensures the safety and the jumper. With delicate and smooth tongs, minimal damage to the lead.
For all kinds of steel cables apply to electric power, the operation of industry and agriculture, and the tightening of the rope line.
Made of alloy steel, strong and durable
High occlusion, strong clamping performance, can grip wire tightly without damaging it.
The swing latch is designed to help hold cable in the jaw.
Suitable for gripping steel strand, aluminium cable steel reinforced, steel wire rope, etc.

0.5 Ton Applicable cable size: 1-10mm/0.04-0.4inch, maximum safe load: 0.5 Ton / 1102 pounds;
1 Ton Applicable cable size: 2.5-16mm/0.1-0.6inch, maximum safe load: 1 Ton / 2204 pounds;
2 Ton Applicable cable size: 4-22mm/0.15-0.8inch, maximum safe load: 2 Ton / 4409 pounds;
3 Ton Applicable cable size: 16-32mm/0.63-1.26inch, maximum safe load: 3 Ton / 6613 pounds.

Use of a wire grip cable puller allows for any slack to be removed quickly and easily and creates a more structurally sound build than manually tightening.
