Name: 7.5HP Gasoline Tripod Digging Machine P-BG-T07 2500mm Depth
Brand: Wuxi Hanyu power equipment co.,ltd
SKU: P-BG-T07
Availability: InStock

MOQ:	1set
Price:	Negotiable
Standard Packaging:	Container
Delivery Period:	15-35days
Payment Method:	L/C, T/T
Supply Capacity:	1000sets/month.

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

HANYU

Certification

ISO9001

Model Number

P-BG-T07

Optic Axis Quantity:

3root

Gasoline Engine Type:

Single Cylinder 4 Stroke

Drilling Tower Height:

2200-2500mm

Optic Axis Diameter:

25mm

Drilling Depth:

2500-2650mm

Type:

Tripod Digging Machine With Gasoline Engine

Highlight:

7.5HP gasoline digging machine

tripod digging machine 2500mm depth

powerline tools digging machine

Product Description

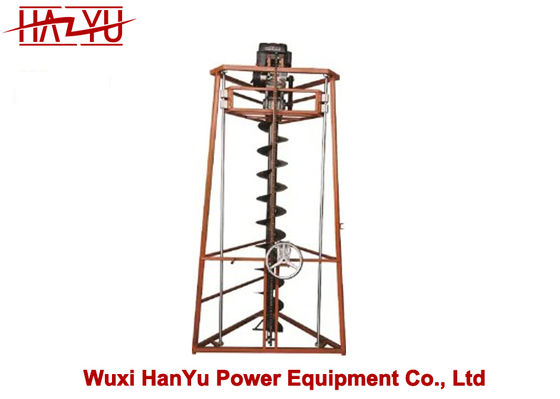

7.5HP Tripod Digging Machine Earth Auger With Gasoline Engine(P-BG-T07)

The ground auger is widely used for planting digging in the seedling garden greening projects on slope, sand, and hard land, the peripheral unearthed of digging up big trees, digging holes of fence buried pile, fertilization burrowed of fruit trees, intertilling and weeding of landscaping projects, etc.
The ground auger digs not less than 80 pits/h, and can dig 640 pits one day counted by 8 working hours, that is, it works more than 30 times as much as manual work.
For intertilling and weeding, the digging width is greater than 50 centimeters, and the area is not less than 800 square meters/h, really accomplishing full automatic operation process.

Parameter
Model		P-BG-T07
Drilling depth	mm	2500-2650
Drilling tower height	mm	2200-2500
Max drilling diameter	mm	400
Optic axis diameter	mm	25
Optic axis quantity	root	3
Gasoline engine model		170F	190F
displacement	Ml	212	420
Power	Kw	4	8.5
Gasoline engine type		Single cylinder 4 stroke
Cool type		Air cool
Rated speed	r/min	3600
Max torque	N·M
Fuel tank capacity	L	3.6	6
Gasoline		92#
Weight	Kg	180	200
Reduction box ratio		1:10
Reduction box weight	Kg	17
Start type		Hand start
Transfer motion type		Reducer optical axis chain drive
Gasoline packing size	mm	510×410×470	660×600×970
Drilling machine packing type		Thickening thin film

Feature
Efficient: Powerful excavation power, pits with a diameter of 10-50cm and a depth of 80cm-2.5m can be completed in about 10-5 minutes, with an efficiency over a hundred times that of ordinary manual excavation methods;
Easy to operate: One operator of the excavator can complete various excavation and drilling tasks for soil pits;
High quality of operation: High strength drill bits are used, and anti torsion and tensile spiral drill rods are positioned at the foot of the mountain and four corners. The excavated soil pit is straight and solid, with a small amount of soil in the pit, and the depth can reach 80-250 centimeters;
Strong practicality: This type of equipment has strong off-road performance, and can be used well in complex terrains such as hills and mountains. It can work on most terrains such as loess layers, clay layers, and soil layers containing pebbles and gravel;
Wide range of use: This equipment can be widely used in power and telecommunications engineering, municipal engineering, green tree planting engineering, building construction engineering, solar photovoltaic power generation engineering, etc;
The equipment has a small volume and is suitable for use in narrow spaces
