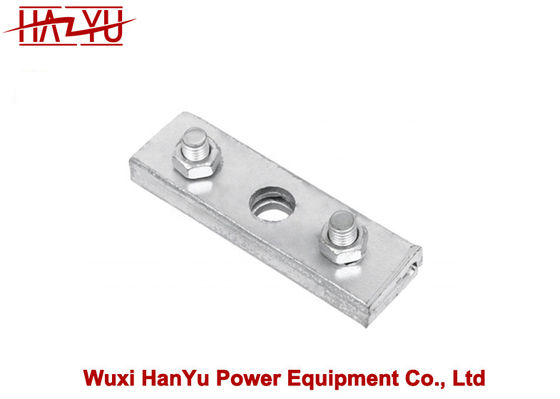

Name: Heavy Duty Drop Forged Cable Clamps 152mm 3 Bolt Suspension Clamp
Brand: Wuxi Hanyu power equipment co.,ltd
SKU: P-*G0103-H2
Availability: InStock

MOQ:	30pieces
Price:	Negotiable
Standard Packaging:	Case
Delivery Period:	15-35days
Payment Method:	L/C, T/T
Supply Capacity:	6000pieces/month.

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

HANYU

Certification

ISO9001

Model Number

P-*G0103-H2

Type:

3 Bolt Suspension Clamp

Length:

152mm

Bolt Diameter:

5/8

Standard:

30Pkg.Qty./Carton

No.of Bolt:

Approximate Ship Weight:

122.00kg./100 Pcs

Highlight:

Heavy Duty Drop Forged Cable Clamps

Drop Forged Cable Clamps 152mm

152mm 3 Bolt Suspension Clamp

Product Description

Powerline Tools P-*G0103-H2 Heavy Duty-Drop Forged Wire Clamp Bolt Suspension Clamp

Stock No.	No.of Bolt	Bolt Diameter	Clamp Dimension			Approximate Ship Weight	Standard
		Bolt Diameter	Length	Width	Thickness	Approximate Ship Weight	Standard
		Inch	mm			kg./100 pcs	Pkg.Qty./Carton
Heavy Duty-Drop Forged
P-*G0101-H1	1	1/2	42	44	9.1	30.50	50
P-*G0101-H2	1	5/8	50	44	9.1	35.00	50
P-*G0102-H1	2	1/2	62	44	9.1	60.00	50
P-*G0102-H2	2	5/8	70	44	9.1	64.50	50
P-*G0103-H1	3	1/2	100	44	9.1	103.50	40
P-*G0103-H2	3	5/8	152	44	9.1	122.00	30

Stock No.	No.of Bolt	Bolt Diameter	Clamp Dimension			Approximate Ship Weight	Standard
		Bolt Diameter	Length	Width	Thickness	Approximate Ship Weight	Standard
		Inch	mm			kg./100 pcs	Pkg.Qty./Carton
Light Duty-Press Forged
P-G0101-L1	1	1/2	42	44	8.3	24.40	50
P-G0101-L2	1	5/8	50	44	8.3	28.50	50
P-G0102-L1	2	1/2	62	44	8.3	48.40	50
P-G0102-L2	2	5/8	70	44	8.3	52.00	50
P-G0103-L1	3	1/2	100	44	8.3	83.00	40
P-G0103-L2	3	5/8	152	44	8.3	97.50	30

Product Description

Three Bolt Guy clamp, also called 3 bolt suspension clamp, rolled from carbon steel with straight parallel grooves that will not damage the strand.

3 Bolt Guy Clamp is mainly used on communication line, together with the stay wire and anchor rod to make the pole stable. When the stay wire goes across the anchor rod, the 3 bolt clamp bites the end of the stay wire to prevent the stay wire from creeping down. The grooves of the guy clamp clad the stay wire, and the bolt will fasten two pieces of guy clamp clamping the stay wire.

In another installation way, the 3 bolt guy clamp is replaced by the wire rope clip or guy grip. Some types of guy clamps have curved ends, protecting the wire from damage.

The guy clamp consist of two plates with three bolts equipped with nuts. The clamping bolts have special shoulders to prevent turning when the nuts are tightened.

Guy clamp is a type of suspension clamp for overhead power line and communication line, it can be used in loop type guy dead-ends. Guy clamp is also called guy wire clamp, parallel groove clamp or straight cable suspension clamp.

According to the number of clamping bolts used on the clamp, there are 1 bolt guy clamps, 2 bolt guy clamps and 3 bolt guy clamps. Guy clamps are designed and manufactured for optimum performance levels.

In terms of the design and the structural appearance, these guy clamps are straight and have parallel grooves. This design ensures that the guy strands are not damaged during the installation process. The design also ensures that the guy clamps have the maximum holding strength.

Guy clamps come in different sizes. The size is determined by the length, width, and diameter of the groove. This means that some guy clamps are longer or wider than others. At the same time, the groove of some guy clamps can support wider strands than others.

The plate halves of the guy clamp are aligned evenly hence easing the installation process. You will not make any mistake when it comes to installing the strands through the guy clamp.

If you would like to get more information about this overhead line fitting, including the guy clamp price, just contact us. We will give you all the technical information that you need to know about the guy clamp.

Heavy Duty Drop Forged Cable Clamps 152mm 3 Bolt Suspension Clamp 0
