Name: Powerline Tools TYQY-65 Hydraulic Compressors Work With Hydraulic Pump
Brand: Wuxi Hanyu power equipment co.,ltd
SKU: QY-65
Availability: InStock

MOQ:	10pieces
Price:	Negotiable
Standard Packaging:	Container
Delivery Period:	15-35days
Payment Method:	L/C, T/T
Supply Capacity:	1000pieces/month.

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

HANYU

Certification

ISO9001

Model Number

QY-65

Type:

TYQY Hydraulic Compressors

Max Compression Force:

650kN

Rated Pressure:

94kN

Conductor Size:

≤500mm

Max Stroke:

25mm

Weight:

25kg

Highlight:

powerline power line tools and equipment

Product Description

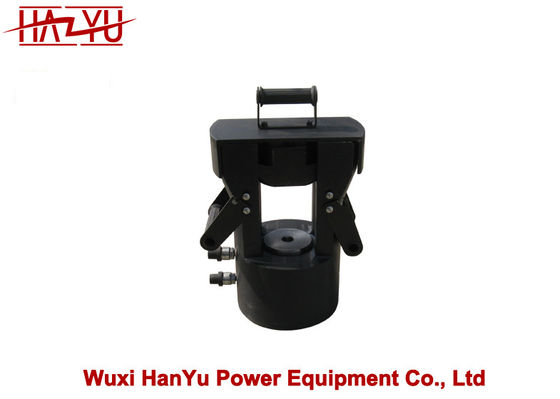

Powerline Tools TYQY-65 Hydraulic Compressors Work With Hydraulic Pump

TYQY Hydraulic Compressors
The hydraulic compressors, mainly implemented in press forged steel, have the following characteristics:

excellent weight/power ratio;

very short pressing cycle (all the presses have an hydraulically-driven piston release);

each power unit or manual hydraulic pump (and hoses) is interchangeable with any hydraulic press

For compressor

QY-35 work with hand pump or Single-tube electric pump; QY-65, QY-125, QY-200 work with hydraulic pump.

Model

Max compression force (kN)

Rated pressure (kN)

Conductor size (mm)

Max stroke (mm)

Weight (kg)

QY-65

650

≤500

QY-125

1250

≤720

QY-200

2000

≤1440

For Die

Model

Compressor model

Aluminum Dies

Steel Dies

Copper Dies

QYD-65

QY-65

26/28/30/32/34/36/
38/40/45/50

12/14/16/18/20/
22/24/26

16~800mm2

QYD-125

QY-125

26/28/30/32/34/36/
38/40/45/50/52/55/60

12/14/16/18/20/
22/24/26

16~800mm2

QYD-200

QY-200

26/28/30/32/34/36/
38/40/45/50/52/55/
60/65/70/75/80

12/14/16/18/20/
22/24/26/28/30/32

16~800mm2

For Gasoline pump

Model

Max compression force

Engine

Flow

Tank capacity

Power

Weight

YB-100

100Mpa

Gasoline

1.6L/min

5.5hp

83kg

YB-100D

100Mpa

Diesel

1.6L/min

4hp

100kg

YB-100M

100Mpa

Motor

1.6L/min

1.5hp

90kg

Powerline Tools TYQY-65 Hydraulic Compressors Work With Hydraulic Pump 0
