Powerline Tools TYBOF-1250mm Welded Steel Reels With Two Cross
  • name
  • name

Powerline Tools TYBOF-1250mm Welded Steel Reels With Two Cross

MOQ: 50pieces
Price: Negotiable
Standard Packaging: Container
Delivery Period: 15-35days
Payment Method: L/C, T/T
Supply Capacity: 5000pieces/month.
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
HANYU
Certification
ISO9001
Model Number
TYBOF-1250
Type:
Welded Steel Reels With Two Cross
Weight:
60kg
Dimensions(A):
420mm
Dimensions(D):
1250mm
Dimensions(B):
530mm
Dimensions(C):
560mm
Highlight:

powerline power line tools and equipment

Product Description

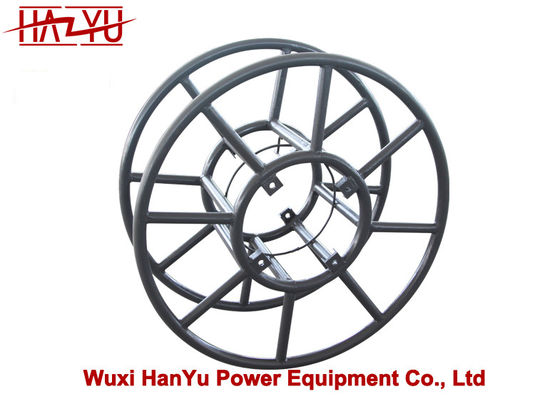

Powerline Tools TYBOF-1250mm Welded Steel Reels With Two Cross



TYBOF Reels

  • The reels are made of welded steel with protective coating.
  • Each reel is provided with two cross supports and connecting bolts in separate package (need to order).



Additional Devices

  • SB-C support: 2 cross supports and connecting bolts (need to order)



Model Dimensions (mm) Width for rope Weight
A B C D (mm) (kg)
TYBOF-850 420 530 560 850 450 32
TYBOF-1100 420 530 560 1100 450 52
TYBOF-1250 420 530 560 1250 450 60
TYBOF-1400 420 530 560 1400 450 74
TYBOF-1440 420 530 560 1440 450 78
TYBOF-1600 420 530 560 1600 450 116



Powerline Tools TYBOF-1250mm Welded Steel Reels With Two Cross 0
