Max pull 2x70kN/1x140kN Line Construction Tool Hydraulic Cable Puller Tensioner
| MOQ: | 1set |
| Price: | USD85,000-90,000/set |
| Standard Packaging: | Container |
| Delivery Period: | 15-35days |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 10Sets/Month |
Detail Information
Place of Origin
China
Brand Name
HANYU
Certification
ISO9001
Model Number
TY2x70TP-9
Max Pull:
2x70kN/1x140kN
Max Tension:
2x70kN/1x140kN
Pull At Max Speed:
2x30kN/1x60kN
Max Rope Diameter:
24mm
Total Weight:
8000kg
Type:
Hydraulic Cable Puller Tensioner
Highlight:
hydraulic cable puller tensioner 140kN
,line construction tool 70kN
,hydraulic puller tensioner with warranty
Product Description

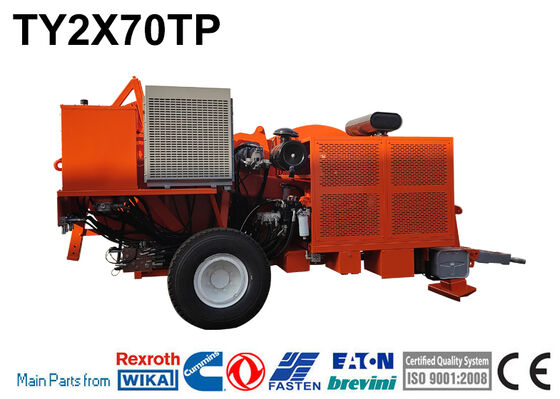

Max Pull 2x70kN/1x140kN Line Construction Tool Hydraulic Cable Puller Tensioner
| TY2x70TP Hydraulic Puller-Tensioner |
|
|
| Characteristics | Bull-wheel diameter | 1700mm |
| Max rope diameter | 24mm | |
| Max conductor diameter | 46mm | |
| Total weight | 8000kg | |
| Overall dimension (length*width*height) | 4700×2300×2700mm |
| Performance | Puller | |
| Max pull | 2x70kN/1x140kN | |
| Speed at max pull | 2km/h | |
| Max speed | 4.5km/h | |
| Pull at max speed | 2x30kN/1x60kN | |
| Tensioner | ||
| Max tension | 2x70kN/1x140kN | |
| Max speed | 4.5km/h | |
| Engine | Diesel | 129kw(173hp) |
| Cooling system | water | |
| Electrical system | 24V |
| Main configuration | Engine | Cummins |
| Hydraulic pump | German Rexroth | |
| Main motor | German Rexroth | |
| Speed reducer | German Rexroth / Italy Bonfiglioli | |
| Hydraulic meter | German WIKA | |
| Operating handle | German Rexroth | |
| The brand of the parts may change depending on the factory's spare parts availability. We guarantees that it will use parts of similar quality, and the actual usage parameters will not change. | ||
| Configuration | 2 negative self-acting hydraulic brakes | |
| 2 hydraulic dynamometers with set-point and automatic control of maximum pull | ||
| Hydraulic oil cooling system | ||
| Digital meter counters | ||
| Control instruments for hydraulic system and diesel engine | ||
| Rigid axles for towing at max speed of 15km/h with mechanical parking brake | ||
| Hydraulic power pack to control up to 2 reel stands with hydraulic head or 2 reel winders with independent controls | ||
| Hydraulic front stabilizer | ||
| Grounding connection point | ||
| Additional Devices | Lighting system for the trailer | |
| 2 hydraulic rope/conductor clamp(extra charge) | ||
| Swivel guide rope roller | ||
| Trailer for towing at max speed of 15 km/h | ||
| Photoelectric counter | ||
| Electronic counter (extra charge) | ||
| Hydraulic Transmission |
|
|
