TY2x70TP 2x70kN/1x140kN Hydraulic Puller Tensioner For Power Line Construction

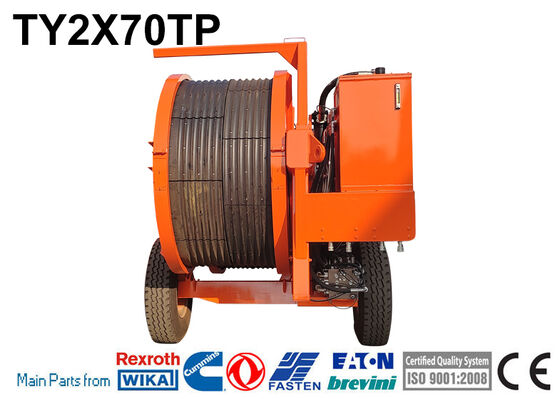

TY2x70TP Hydraulic Puller-Tensioner

• The machine is suitable to string one or two ropes or bundled conductors on bull-wheels with two pair of bull-wheels with completely independent controls. The bull-wheel grooves are made of wear-proof interchangeable nylon sectors. The machine is completely electronically controlled.

Characteristics

• Bull-wheel diameter: 1700mm
• Max rope diameter : 24mm
• Max conductor diameter: 46mm
• Total weight: 8000kg
• Overall dimension (length*width*height): 4700×2300×2700mm

Performance

Puller

• Max pull: 2x70kN/1x140kN
• Speed at max pull: 2km/h
• Max speed: 4.5km/h
• Pull at max speed: 2x30kN/1x60kN

Tensioner

• Max tension: 2x70kN/1x140kN
• Max speed: 4.5km/h

Engine

• Diesel 129kw(173hp)
• Cooling system water
• Electrical system 24V

Main configuration

• Engine: Cummins
• Hydraulic pump: German Rexroth
• Main motor: German Rexroth
• Speed reducer: German Rexroth / Italy Bonfiglioli
• Hydraulic meter: German WIKA
• Operating handle: German Rexroth
• The brand of the parts may change depending on the factory's spare parts availability. We guarantees that it will use parts of similar quality, and the actual usage parameters will not change.

Hydraulic Transmission

• 2 closed hydraulic circuit for step less speed variation in both rotating directions. This machine is provided with 2 pull pro-setting system that maintains the pre-set pulling value (also when the speed is reduced to "0") by automatically adjusting the operation speed according to the friction and unexpected loads which may occur.

Configuration

• 2 negative self-acting hydraulic brakes
• 2 hydraulic dynamometers with set-point and automatic control of maximum pull
• Hydraulic oil cooling system
• Digital meter counters
• Control instruments for hydraulic system and diesel engine
• Rigid axles for towing at max speed of 15km/h with mechanical parking brake
• Hydraulic power pack to control up to 2 reel stands with hydraulic head or 2 reel winders with independent controls
• Hydraulic front stabilizer
• Grounding connection point

Additional Devices

• Lighting system for the trailer
• 2 hydraulic rope/conductor clamp(extra charge)
• Swivel guide rope roller
• Trailer for towing at max speed of 15 km/h
• Photoelectric counter
• Electronic counter (extra charge)
