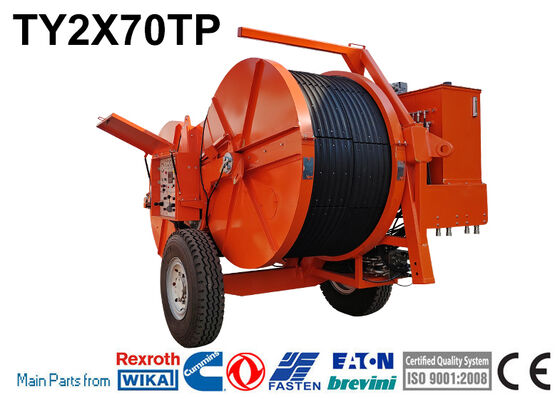

TY2x70TP Hydraulic Puller Tensioner For Cable Pulling / Tensioning Stringing Conductor

• The machine is suitable to string one or two ropes or bundled conductors on bull-wheels with two pair of bull-wheels with completely independent controls.
• The bull-wheel grooves are made of wear-proof interchangeable nylon sectors. The machine is completely electronically controlled.

Puller

• Max pull: 2x70kN/1x140kN
• Max speed: 4.5km/h
• Speed at max pull: 2km/h
• Pull at max speed: 2x30kN/1x60kN

Tensioner

• Max tension: 2x70kN/1x140kN
• Max speed: 4.5km/h

• Max rope diameter : 24mm
• Bull-wheel diameter: 1700mm
• Total weight: 8000kg
• Max conductor diameter: 46mm
• Overall dimension (length*width*height): 4700×2300×2700mm

• Engine: Cummins
• Hydraulic meter: German WIKA
• Main motor: German Rexroth
• Hydraulic pump: German Rexroth
• Speed reducer: German Rexroth / Italy Bonfiglioli
• Operating handle: German Rexroth
• The brand of the parts may change depending on the factory's spare parts availability. We guarantees that it will use parts of similar quality, and the actual usage parameters will not change.

Engine

• Diesel: 129kw(173hp)
• Cooling system: water
• Electrical system: 24V

Hydraulic Transmission

• 2 closed hydraulic circuit for step less speed variation in both rotating directions.
• This machine is provided with 2 pull pro-setting system that maintains the pre-set pulling value (also when the speed is reduced to "0") by automatically adjusting the operation speed according to the friction and unexpected loads which may occur.

• Lighting system for the trailer
• Photoelectric counter
• Swivel guide rope roller
• 2 hydraulic rope/conductor clamp(extra charge)
• Trailer for towing at max speed of 15 km/h
• Electronic counter (extra charge)

• 2 negative self-acting hydraulic brakes
• Hydraulic power pack to control up to 2 reel stands with hydraulic head or 2 reel winders with independent controls
• Hydraulic oil cooling system
• Digital meter counters
• 2 hydraulic dynamometers with set-point and automatic control of maximum pull
• Control instruments for hydraulic system and diesel engine
• Rigid axles for towing at max speed of 15km/h with mechanical parking brake
• Grounding connection point
• Hydraulic front stabilizer
