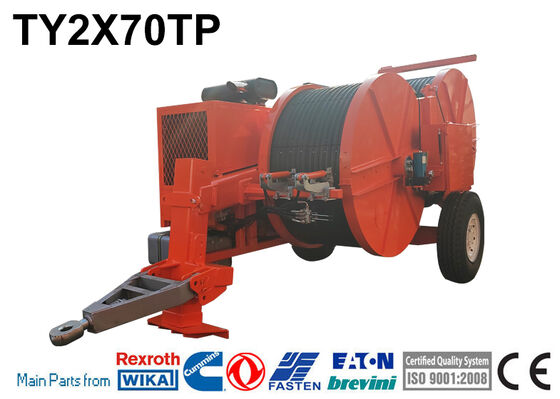

Power Line Construction TY2x70TP Hydraulic Puller Tensioner Wire Tension Device
| MOQ: | 1set |
| Price: | USD85,000-90,000/set |
| Standard Packaging: | Container |
| Delivery Period: | 15-35days |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 10Sets/Month |
Detail Information
Place of Origin
China
Brand Name
HANYU
Certification
ISO9001
Model Number
TY2x70TP-7
Type:
TY2x70TP Hydraulic Puller Tensioner
Max Conductor Diameter:
46mm
Max Tension:
2x70kN/1x140kN
Max Pull:
2x70kN/1x140kN
Cooling System:
Water
Diesel:
129kw(173hp)
Highlight:
TY2x70TP hydraulic puller tensioner
,hydraulic wire tension device
,power line construction tensioner
Product Description
Power Line Construction TY2x70TP Hydraulic Puller Tensioner Wire Tension Device
| TY2x70TP Hydraulic Puller-Tensioner | |
| The machine is suitable to string one or two ropes or bundled conductors on bull-wheels with two pair of bull-wheels with completely independent controls. The bull-wheel grooves are made of wear-proof interchangeable nylon sectors. The machine is completely electronically controlled. | |
| Performance | |
| Puller | |
| Max pull | 2x70kN/1x140kN |
| Speed at max pull | 2km/h |
| Max speed | 4.5km/h |
| Pull at max speed | 2x30kN/1x60kN |
|
Tensioner |
|
| Max tension | 2x70kN/1x140kN |
| Max speed | 4.5km/h |
| Characteristics | |
| Bull-wheel diameter | 1700mm |
| Max rope diameter |
24mm |
| Max conductor diameter | 46mm |
| Total weight | 8000kg |
| Overall dimension (length*width*height) | 4700×2300×2700mm |
| Engine | |
| Diesel | 129kw(173hp) |
| Cooling system | water |
| Electrical system | 24V |
| Main configuration | |
| Engine | Cummins |
| Hydraulic pump | German Rexroth |
| Main motor | German Rexroth |
| Speed reducer | German Rexroth / Italy Bonfiglioli |
| Hydraulic meter | German WIKA |
| Operating handle | German Rexroth |
| The brand of the parts may change depending on the factory's spare parts availability. We guarantees that it will use parts of similar quality, and the actual usage parameters will not change. | |
| Hydraulic Transmission | |
| 2 closed hydraulic circuit for step less speed variation in both rotating directions. This machine is provided with 2 pull pro-setting system that maintains the pre-set pulling value (also when the speed is reduced to "0") by automatically adjusting the operation speed according to the friction and unexpected loads which may occur. | |
| Additional Devices | |
| Lighting system for the trailer | |
|
2 hydraulic rope/conductor clamp(extra charge) |
|
| Swivel guide rope roller | |
| Trailer for towing at max speed of 15 km/h | |
|
Photoelectric counter |
|
| Electronic counter (extra charge) | |
|
Configuration |
|
|
2 negative self-acting hydraulic brakes |
|
| 2 hydraulic dynamometers with set-point and automatic control of maximum pull | |
| Hydraulic oil cooling system | |
| Digital meter counters | |
| Control instruments for hydraulic system and diesel engine | |
| Rigid axles for towing at max speed of 15km/h with mechanical parking brake | |
| Hydraulic power pack to control up to 2 reel stands with hydraulic head or 2 reel winders with independent controls | |
| Hydraulic front stabilizer | |
| Grounding connection point | |
