Name: Transmission Line Stringing Equipment Cable Pulling Hydraulic Tensioner
Brand: Wuxi Hanyu power equipment co.,ltd
SKU: TY2x70-7
Price: 82.00 USD
Availability: InStock

MOQ:	1set
Price:	USD80,500-84,000/set
Standard Packaging:	Container
Delivery Period:	15-35days
Payment Method:	L/C, T/T
Supply Capacity:	10Sets/Month

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

HANYU

Certification

ISO9001

Model Number

TY2x70-7

Max Intermittent Tension:

2x70kN

Max Reverse Pulling Force:

2*60kN/1*120kN

Pull At Max Speed:

2x30kN/1x60kN

Diesel:

77kw(103hp)

Electrical System:

24V

Type:

Cable Pulling Hydraulic Tensioner

Highlight:

hydraulic tensioner cable pulling equipment

transmission line stringing hydraulic tensioner

cable pulling equipment with warranty

Product Description

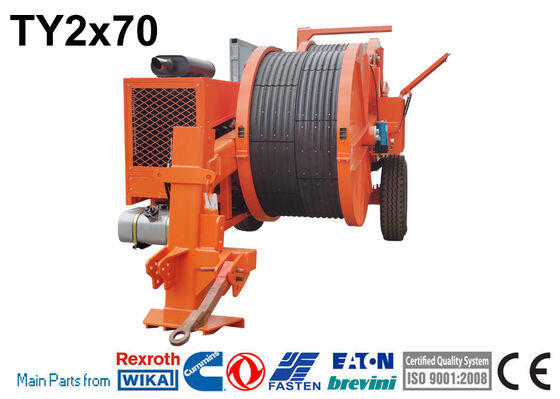

Transmission Line Stringing Equipment Cable Pulling Hydraulic Tensioner

TY2x70 Hydraulic Tensioner	The machine allows for the tension stringing of twin-bundle conductor of 630mm² and below in mountainous and hilly areas, of twin-bundle conductor of 720mm² and below in flat lands, and of conductor 720mm² in various terrains;
TY2x70 Hydraulic Tensioner	besides, it can be used for tension stringing of OPGW or ADSS optical cable and 500kV haulage rope in various terrains

Performance	Max intermittent tension: 2x70kN
	Max continuous tension: 2x60kN
	Max reverse pulling force: 260kN/1120kN
	Max reverse pulling speed: 3km/h
	Pull at max speed: 2x30kN/1x60kN
	Speed at max tension: 2.5km/h
	Max speed: 5km/h

Characteristics	Max conductor diameter: 45mm
	Bull-wheel diameter: 1700mm
	Total weight: 9000kg
	Groove number: 2x6
	Overall dimension (lengthwidthheight): 470023002700mm

Main configuration	Engine: Cummins
	Main hydraulic valves: USA Sun / Italy ATOS
	Main motor: German Rexroth/French Leduc
	Hydraulic pump: German Rexroth/Dnish Danfoss
	Speed reducer: German Rexroth / Italy Bonfiglioli

Engine	Diesel: 77kw(103hp)
	Cooling system: water
	Electrical system: 24V

Hydraulic Transmission	The machine can realize step less speed.
Hydraulic Transmission	The machine is provided with tension presetting system.

Configuration	2 negative self-acting hydraulic brakes
	Control instruments for hydraulic system and diesel engine
	2 hydraulic dynamometers
	2 digital meter and speed counters
	Hydraulic oil cooling system
	Rigid axle for towing at max speed of 15km/h with mechanical parking brake

Additional Devices	Trailer for towing at max speed of 15 km/h
	2 hydraulic rope/conductor clamp (extra charge)
	Swivel guide rope roller
	Air brake system for the trailer
	Digital speed and meter counter
	Lighting system for the trailer

Transmission Line Stringing Equipment Cable Pulling Hydraulic Tensioner 0
