Name: TY2x35 Hydraulic Cable Tensioner Transmission Line Stringing Equipment For Construction
Brand: Wuxi Hanyu power equipment co.,ltd
SKU: TY2x35
Availability: InStock

MOQ:	1set
Price:	Negotiable
Standard Packaging:	Container
Delivery Period:	15-35days
Payment Method:	L/C, T/T
Supply Capacity:	10 Sets/Month

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

HANYU

Certification

ISO9001

Model Number

TY2x35

Type:

Hydraulic Cable Tensioner For Transmission Line Construction

Max Conductor Diameter:

40mm

Max Speed:

5km/h

Overall Dimension (length*width*height):

4300×2250×2700mm

Groove Number:

2x5

Max Reverse Pulling Force:

2x30kN

Highlight:

ty2x35 transmission line stringing tools

ty2x35 transmission line stringing equipment

hydraulic transmission line stringing tools

Product Description

TY2x35 Hydraulic Cable Tensioner For Transmission Line Construction

TY2x35 Hydraulic Tensioner
The machine allows for the tension stringing of twin-bundle conductor of 630mm² and below in mountainous and hilly areas, of twin-bundle conductor of 720mm² and below in flat lands, and of conductor 720mm² in various terrains; besides, it can be used for tension stringing of OPGW or ADSS optical cable and 500kV haulage rope in various terrains

Characteristics
Total weight	4500kg
Max conductor diameter	40mm
Groove number	2x5
Bull-wheel diameter	1300mm
Overall dimension (lengthwidthheight)	4300×2250×2700mm

Performance
Max intermittent tension	2x40kN
Max continuous tension	2x35kN
Max speed	5km/h
Speed at max tension	2.5km/h
Max reverse pulling force	2x30kN
Pull at max speed	2x20kN
Max reverse pulling speed	5km/h

Main configuration
Engine	Cummins
Speed reducer	German Rexroth / Italy Bonfiglioli
Hydraulic pump	German Rexroth/Dnish Danfoss
Main motor	German Rexroth/French Leduc
Main hydraulic valves	USA Sun / Italy ATOS

Engine
Diesel	77kw(103hp)
Cooling system	water
Electrical system	24V

Hydraulic Transmission
The machine can realize step less speed.
The machine is provided with tension presetting system.

Configuration
Hydraulic dynamometers
Grounding connection point
Hydraulic oil cooling system
Hydraulic power pack to control up to 2 separated drum stands with hydraulic motor
Digital speed and meter counter

Additional Devices
Swivel guide rope roller
2 hydraulic conductor clamps for drum change operations (extra charge)
Air brake system for the trailer (extra charge)
Lighting system for the trailer

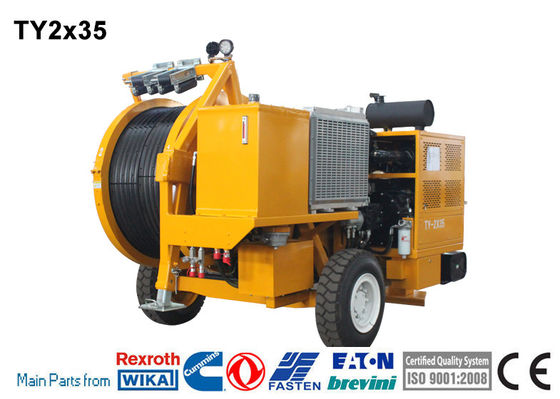

TY2x35 Hydraulic Cable Tensioner Transmission Line Stringing Equipment For Construction 0
