Transmission Line Stringing Equipment Hydraulic Tensioning Stringing Conductor
  • name
  • name

Transmission Line Stringing Equipment Hydraulic Tensioning Stringing Conductor

MOQ: 1set
Price: USD57,500-61,000/set
Standard Packaging: Container
Delivery Period: 15-35days
Supply Capacity: 10Sets/Month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
HANYU
Certification
ISO9001
Model Number
TY2x40-1800
Max Continuous Tension:
2x40kN
Max Reverse Pulling Speed:
5km/h
Engine:
Cummins
Main Hydraulic Valves:
USA Sun / Italy ATOS
Pull At Max Speed:
2x20kN
Type:
Hydraulic Tensioning Stringing Conductor
Highlight:

hydraulic tensioning stringing conductor

,

transmission line stringing equipment

,

conductor stringing hydraulic equipment

Product Description

Transmission Line Stringing Equipment Hydraulic Tensioning Stringing Conductor

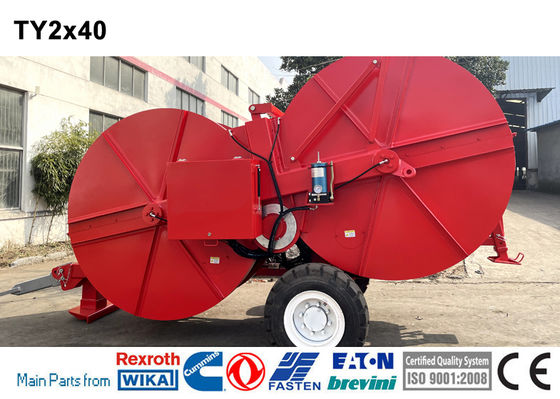

TY2x40-1800 Hydraulic Tensioner The machine allows for the tension stringing of twin-bundle conductor of 630mm2 and below in mountainous and hilly areas, of twin-bundle conductor of 720mm2 and below in flat lands, and of conductor 720mm2 in various terrains; besides, it can be used for tension stringing of OPGW or ADSS optical cable and 500kV haulage rope in various terrains
Performance Max intermittent tension 2x45kN
  Max continuous tension 2x40kN
  Speed at max tension 2.5km/h
  Max speed 5km/h
  Pull at max speed 2x20kN
  Max reverse pulling force 2x35kN
  Max reverse pulling speed 5km/h
Characteristics Bull-wheel diameter 1800mm
  Max conductor diameter 40mm
  Groove number 2x5
  Total weight 7790kg
  Overall dimension (length*width*height) 4600×2250×2700mm
Main configuration Engine Cummins
  Hydraulic pump German Rexroth/Dnish Danfoss
  Main motor

German Rexroth/French Leduc
  Speed reducer

German Rexroth / Italy Bonfiglioli
  Main hydraulic valves USA Sun / Italy ATOS
Engine Diesel 77kw(103hp)
  Cooling system water
  Electrical system 24V
Additional Devices

2 hydraulic rope/conductor clamp(extra charge)
  Digital speed and meter counter


Lighting system for the trailer


Swivel guide rope roller


Trailer for towing at max speed of 15 km/h
Hydraulic Transmission

The machine can realize step less speed.
  The machine is provided with tension presetting system.
Configuration

Hydraulic oil cooling system


Grounding connection point
  Hydraulic power pack to control up to 2 separated drum stands with hydraulic motor


Hydraulic dynamometers


Hydraulic front stabilizer


Digital speed and meter counter



Transmission Line Stringing Equipment Hydraulic Tensioning Stringing Conductor 0
