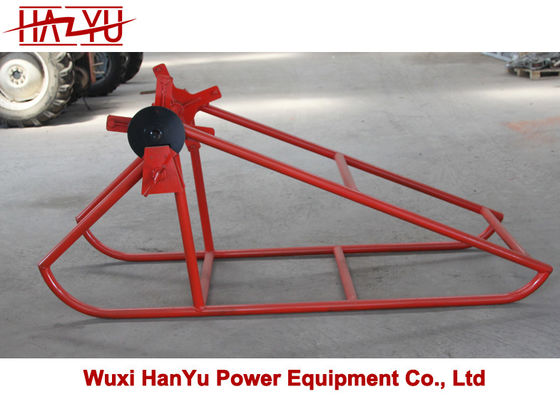

Name: Transmission Line Stringing Tools Cradle Reel Elevators Capacity 30KN
Brand: Wuxi Hanyu power equipment co.,ltd
SKU: TYCVC-004
Availability: InStock

MOQ:	20pieces
Price:	Negotiable
Standard Packaging:	Container
Delivery Period:	15-35days
Payment Method:	L/C, T/T
Supply Capacity:	1000pieces/month.

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

HANYU

Certification

ISO9001

Model Number

TYCVC-004

Type:

Cradle Reel Elevators

Dimensions(C):

1380mm

Dimensions(B):

1442mm

Dimensions(A):

2015mm

Capacity:

30kN

Mass:

390kg

Highlight:

30kn transmission line stringing tools

30kn transmission line stringing equipment

Product Description

Transmission Line Stringing Tools Cradle Reel Elevators Capacity 30KN

TYCVC Cradle Reel Elevators
Model	Dimensions					Capacity	Mass
	A	B	C	D min	D max	Capacity	Mass
	mm					KN	kg
TYCVC-002	2550	1325	1060	1100	1400	20	58
TYCVC-201	3020	1060	1130		1900	26	150
TYCVC-004	2015	1442	1380		1400	30	390
The Cradle reel elevators are made of welded steel with a protective coating.
It is suitable to string traction rope and guide rope, with a disc brake, it have 0-150kg tension, can be used for tension stringing, when you stop to string, the reel will be stopped automatically.
Additional Devices
Disk brake device

Transmission Line Stringing Tools Cradle Reel Elevators Capacity 30KN 0
