Power Line Hydraulic Puller Tensioner Stringing Equipment TY90TP
  • name
  • name

Power Line Hydraulic Puller Tensioner Stringing Equipment TY90TP

MOQ: 1set
Price: Negotiable
Standard Packaging: Container
Delivery Period: 15-35days
Payment Method: L/C, T/T
Supply Capacity: 10Sets/Month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
HANYU
Certification
ISO9001
Model Number
TY90TP
Type:
Hydraulic Puller Tensioner
Max Pull:
90kN
Max Tension:
90kN
Max Conductor Diameter:
40mm
Speed Reducer:
German Rexroth / Italy Bonfiglioli
Engine:
Cummins
Hydraulic Meter:
German WIKA
Main Motor:
German Rexroth
Highlight:

Power Line Hydraulic Puller Tensioner

,

Hydraulic Puller Tensioner Stringing Equipment

,

Stringing Equipment TY90TP

Product Description

Cummins Engine Hydraulic Puller Tensioner Power Line Stringing Equipment



Performance

Puller

  1. Max pull: 90kN
  2. Speed at max pull: 2.4km/h
  3. Pull at max speed: 44kN
  4. Max speed: 5km/h

Tensioner

  1. Max tension: 90kN
  2. Max speed: 5km/h



TY90TP Hydraulic Puller-Tensioner

The machine is suitable to string one or two ropes or bundled conductors.

The bull-wheel grooves are made of high resistance interchangeable nylon sectors.

The machine is completely electronically controlled.



Characteristics

  1. Bull-wheel diameter: 1500mm
  2. Groove number: 10
  3. Max rope diameter : 18mm
  4. Total weight: 6800kg
  5. Max conductor diameter: 40mm
  6. Overall dimension (length*width*height): 4700×2300×2700mm

Engine

  1. Diesel: 118kw(158hp)
  2. Electrical system: 24V
  3. Cooling system: water

Main configuration

  1. Engine: Cummins
  2. Hydraulic pump: German Rexroth
  3. Speed reducer: German Rexroth / Italy Bonfiglioli
  4. Main motor: German Rexroth
  5. Operating handle: German Rexroth
  6. Hydraulic meter: German WIKA

Configuration

  1. Negative self-acting hydraulic brakes
  2. Hydraulic dynamometers with set-point and automatic control of maximum pull
  3. Hydraulic oil cooling system
  4. Digital meter counters
  5. Control instruments for hydraulic system and diesel engine
  6. Rigid axles for towing at max speed of 15km/h with mechanical parking brake
  7. Hydraulic power pack to control up to 2 reel stands with hydraulic head or 2 reel winders
  8. Hydraulic front stabilizer
  9. Grounding connection point

Hydraulic Transmission



Closed hydraulic circuit for step less speed variation in both rotating directions. This machine is provided with a pull pro-setting system that maintains the pre-set pulling value (also when the speed is reduced to "0") by automatically adjusting the operation speed according to the friction and unexpected loads which may occur.

Additional Devices

  1. Lighting system for the trailer
  2. 2 hydraulic rope/conductor clamp(extra charge)
  3. Swivel guide rope roller
  4. Trailer for towing at max speed of 15 km/h
  5. Digital speed and meter counter

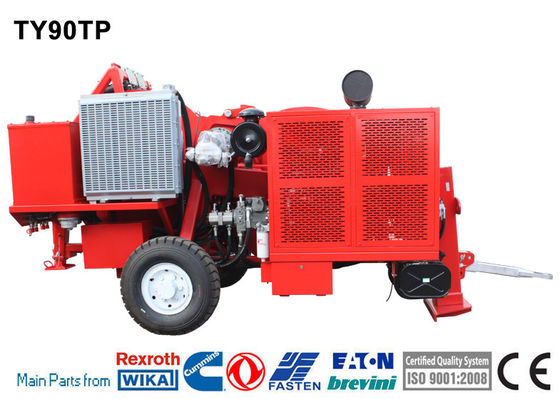

Power Line Hydraulic Puller Tensioner Stringing Equipment TY90TP 0
