Name: Hydraulic Cable Puller Tensioner 5km/H Max Speed Power Line Tools TY90TP
Brand: Wuxi Hanyu power equipment co.,ltd
SKU: TY90TP
Availability: InStock

MOQ:	1set
Price:	Negotiable
Standard Packaging:	Container
Delivery Period:	15-35days
Payment Method:	L/C, T/T
Supply Capacity:	10Sets/Month

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

HANYU

Certification

ISO9001

Model Number

TY90TP

Max Tension:

90kN

Max Pull:

90kN

Max Speed:

5km/h

Pull At Max Speed:

44kN

Max Rope Diameter:

18mm

Max Conductor Diameter:

40mm

Diesel:

118kw(158hp)

Type:

TY90TP Hydraulic Cable Puller Tensioner

Highlight:

Hydraulic Cable Puller Tensioner

Cable Puller Tensioner 5km/H

Power Line Hydraulic Cable Puller

Product Description

Power Line Tools TY90TP Hydraulic Cable Puller Tensioner Max Speed 5km/H

Hydraulic Puller-Tensioner

The machine is suitable to string one or two ropes or bundled conductors.
The bull-wheel grooves are made of high resistance interchangeable nylon sectors.
The machine is completely electronically controlled.

Performance

Puller

Max pull: 90kN
Speed at max pull: 2.4km/h
Max speed: 5km/h
Pull at max speed: 44kN

Tensioner

Max tension: 90kN
Max speed: 5km/h

Hydraulic Transmission

Closed hydraulic circuit for step less speed variation in both rotating directions.
This machine is provided with a pull pro-setting system that maintains the pre-set pulling value (also when the speed is reduced to "0") by automatically adjusting the operation speed according to the friction and unexpected loads which may occur.

Characteristics

Bull-wheel diameter: 1500mm
Max rope diameter : 18mm
Groove number: 10
Max conductor diameter: 40mm
Total weight: 6800kg
Overall dimension (length*width*height): 4700×2300×2700mm

Main configuration

Engine: Cummins
Hydraulic pump: German Rexroth
Main motor: German Rexroth
Speed reducer: German Rexroth / Italy Bonfiglioli
Hydraulic meter: German WIKA
Operating handle: German Rexroth

Engine

Diesel: 118kw(158hp)
Cooling system: water
Electrical system: 24V

Configuration

Negative self-acting hydraulic brakes
Hydraulic front stabilizer
Grounding connection point
Hydraulic dynamometers with set-point and automatic control of maximum pull
Hydraulic power pack to control up to 2 reel stands with hydraulic head or 2 reel winders
Hydraulic oil cooling system
Digital meter counters
Control instruments for hydraulic system and diesel engine
Rigid axles for towing at max speed of 15km/h with mechanical parking brake

Additional Devices

Lighting system for the trailer
Digital speed and meter counter
2 hydraulic rope/conductor clamp(extra charge)
Trailer for towing at max speed of 15 km/h
Swivel guide rope roller

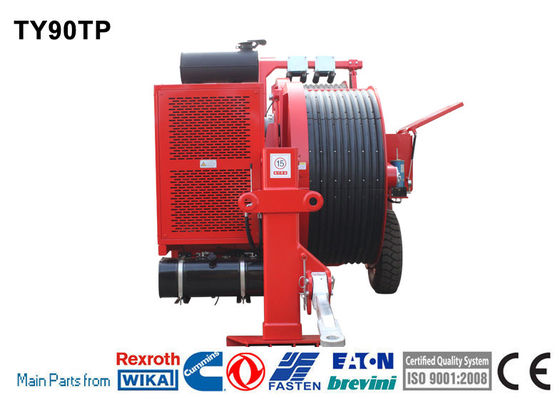

Hydraulic Cable Puller Tensioner 5km/H Max Speed Power Line Tools TY90TP 0
