Hydraulic Tension Machine With Conductor Clamp Transmission Line Stringing Equipment
| MOQ: | 1set |
| Price: | USD79,000-85,000/set |
| Standard Packaging: | Container |
| Delivery Period: | 15-35days |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 10Sets/Month |
hydraulic tension machine with conductor clamp
,transmission line stringing equipment with hydraulic tension
,conductor clamp transmission line stringing machine
Hydraulic Tension Machine With Conductor Clamp Transmission Line Stringing Equipment
| Max intermittent tension | 2x70kN |
| Max continuous tension | 2x60kN |
| Max reverse pulling speed | 3km/h |
| Max reverse pulling force | 2*60kN/1*120kN |
| Max speed | 5km/h |
| Speed at max tension | 2.5km/h |
| Pull at max speed | 2x30kN/1x60kN |
| Max conductor diameter | 45mm |
| Total weight | 11500kg |
| Groove number | 2x6 |
| Bull-wheel diameter | 1700mm |
| Overall dimension (length*width*height) | 5500*2460*2900mm |
| Engine | Cummins |
| Speed reducer | German Rexroth / Italy Bonfiglioli |
| Main hydraulic valves | USA Sun / Italy ATOS |
| Hydraulic pump | German Rexroth/Dnish Danfoss |
| Main motor | German Rexroth/French Leduc |
| Diesel | 77kw(103hp) |
| Cooling system | water |
| Electrical system | 24V |

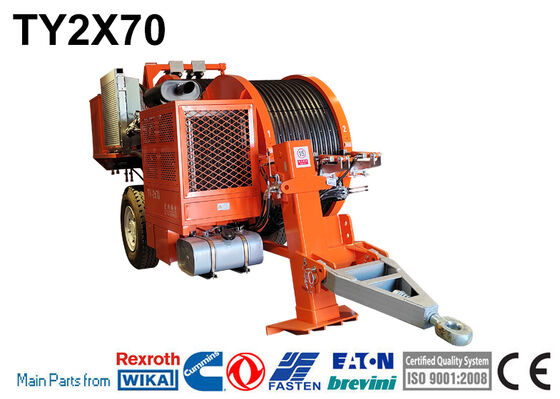

| TY2x70 Hydraulic Tensioner |
| |
| ||
| Configuration | 2 negative self-acting hydraulic brakes |
2 hydraulic dynamometers | |
Hydraulic oil cooling system | |
2 digital meter and speed counters | |
Control instruments for hydraulic system and diesel engine | |
Rigid axle for towing at max speed of 15km/h with mechanical parking brake | |
Hydraulic power pack to control up to 2 separate drum stands with hydraulic motor | |
Grounding connection point |
| Hydraulic Transmission | The machine can realize step less speed. |
The machine is provided with tension presetting system. |
| Additional Devices | Lighting system for the trailer |
2 hydraulic rope/conductor clamp (extra charge) | |
Swivel guide rope roller | |
Trailer for towing at max speed of 15 km/h | |
Digital speed and meter counter | |
Air brake system for the trailer (extra charge) |
