Transmission Line Stringing Equipment Hydraulic Cable Tensioner With Conductor Clamp

MOQ:	1set
Price:	USD79,000-85,000/set
Standard Packaging:	Container
Delivery Period:	15-35days
Payment Method:	L/C, T/T
Supply Capacity:	10Sets/Month

Details Information

Product Description

Detail Information

Place of Origin

China

Brand Name

HANYU

Certification

ISO9001

Model Number

TY2x70-2

Max Intermittent Tension:

2x70kN

Max Continuous Tension:

2x60kN

Type:

Hydraulic Tensioner With Conductor Clamp

Max Conductor Diameter:

Max Reverse Pulling Force:

2*60kN/1*120kN

Overall Dimension (length*width*height):

5500*2460*2900mm

Highlight:

hydraulic cable tensioner with conductor clamp

transmission line stringing equipment hydraulic

cable tensioner for conductor installation

Product Description

Transmission Line Stringing Equipment Hydraulic Cable Tensioner With Conductor Clamp

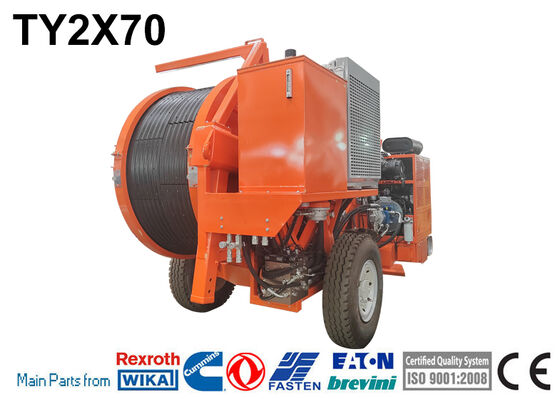

TY2x70 Hydraulic Tensioner
The machine allows for the tension stringing of twin-bundle conductor of 630mm² and below in mountainous and hilly areas, of twin-bundle conductor of 720mm² and below in flat lands, and of conductor 720mm² in various terrains;
Besides, it can be used for tension stringing of OPGW or ADSS optical cable and 500kV haulage rope in various terrains

Performance
Max intermittent tension	2x70kN
Max continuous tension	2x60kN
Speed at max tension	2.5km/h
Max speed	5km/h
Pull at max speed	2x30kN/1x60kN
Max reverse pulling force	260kN/1120kN
Max reverse pulling speed	3km/h

Characteristics
Bull-wheel diameter	1700mm
Max conductor diameter	45mm
Groove number	2x6
Total weight	11500kg
Overall dimension (lengthwidthheight)	550024602900mm

Main configuration
Engine	Cummins
Hydraulic pump	German Rexroth/Dnish Danfoss
Main motor	German Rexroth/French Leduc
Speed reducer	German Rexroth / Italy Bonfiglioli
Main hydraulic valves	USA Sun / Italy ATOS

Engine
Diesel	77kw(103hp)
Cooling system	water
Electrical system	24V

Hydraulic Transmission	The machine can realize step less speed.
	The machine is provided with tension presetting system.

Configuration	2 negative self-acting hydraulic brakes
	2 hydraulic dynamometers
	Hydraulic oil cooling system
	2 digital meter and speed counters
	Control instruments for hydraulic system and diesel engine
	Rigid axle for towing at max speed of 15km/h with mechanical parking brake
	Hydraulic power pack to control up to 2 separate drum stands with hydraulic motor
	Grounding connection point

Additional Devices	Lighting system for the trailer
	2 hydraulic rope/conductor clamp (extra charge)
	Swivel guide rope roller
	Trailer for towing at max speed of 15 km/h
	Digital speed and meter counter
	Air brake system for the trailer (extra charge)
