2x70KN Transmission Line Stringing Equipment Hydraulic Electric Cable Tensioner

MOQ:	1set
Price:	USD94,000-97,000/set
Standard Packaging:	Container
Delivery Period:	15-35days
Payment Method:	L/C, T/T
Supply Capacity:	10Sets/Month

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

HANYU

Certification

ISO9001

Model Number

TY2x70IV

Type:

Hydraulic Electric Cable Tensioner

Bull-wheel Diameter:

1500mm

Max Reverse Pulling Speed:

5km/h

Groove Number:

Max Intermittent Tension:

2x70/1x140kN

Max Continuous Tension:

2x65/1x130kN

Highlight:

hydraulic electric cable tensioner

transmission line stringing equipment

70KN cable tensioner with warranty

Product Description

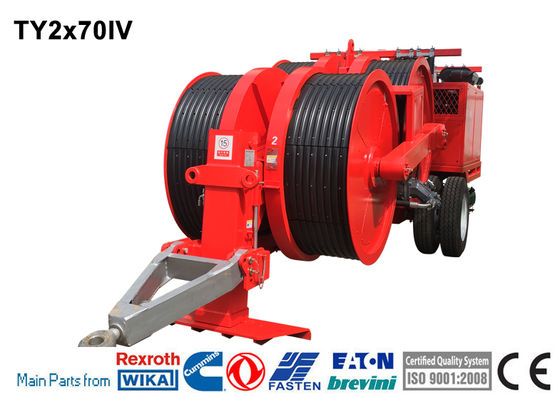

2x70KN Transmission Line Stringing Equipment Hydraulic Electric Cable Tensioner

TY2x70IV Hydraulic Tensioner	The machine allows for the tension stringing of four-bundle conductor of 630mm² and below in mountainous and hilly areas, of twin-bundle conductor of 720mm² and below in flat lands, and of conductor 720mm² in various terrains; besides, it can be used for tension stringing of OPGW or ADSS optical cable and 500kV haulage rope in various terrains
Characteristics	Bull-wheel diameter: 1500mm Max conductor diameter: 40mm Groove number: 2x8 Total weight: 12000kg Overall dimension (lengthwidthheight):550022802700mm
Performance	Max intermittent tension: 2x70/1x140kN Max continuous tension: 2x65/1x130kN Speed at max tension: 2.5km/h Max speed: 5km/h Pull at max speed: 2x25/1x50kN Max reverse pulling force: 260kN/1120kN Max reverse pulling speed: 5km/h
Main configuration	Engine: Cummins Hydraulic pump: German Rexroth/Dnish Danfoss Main motor:German Rexroth/French Leduc Speed reducer: German Rexroth / Italy Bonfiglioli Main hydraulic valves: USA Sun / Italy ATOS
Engine	Diesel: 77kw(103hp) Cooling system: water Electrical system: 24V
Hydraulic Transmission	The machine can realize step less speed. The machine is provided with tension presetting system.
Configuration	2 negative self-acting hydraulic brakes 2 hydraulic dynamometers Hydraulic oil cooling system 2 digital meter and speed counters Control instruments for hydraulic system and diesel engine Hydraulic front stabilizer Hydraulic power pack to control up to 4 separate drum stands with hydraulic motor Grounding connection point
Additional Devices	Lighting system for the trailer 4 hydraulic rope/conductor clamp (extra charge) Swivel guide rope roller Air brake system for the trailer (extra charge) Digital Speed and meter counter

2x70KN Transmission Line Stringing Equipment Hydraulic Electric Cable Tensioner 0
