Transmission Line Stringing Equipment 2x70KN Hydraulic Wheel Tensioner

MOQ:	1set
Price:	USD94,000-97,000/set
Standard Packaging:	Container
Delivery Period:	15-35days
Payment Method:	L/C, T/T
Supply Capacity:	10Sets/Month

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

HANYU

Certification

ISO9001

Model Number

TY2x70IV

Type:

Hydraulic Wheel Tensioner

Bull-wheel Diameter:

1500mm

Groove Number:

Max Intermittent Tension:

2x70/1x140kN

Max Continuous Tension:

2x65/1x130kN

Max Reverse Pulling Speed:

5km/h

Highlight:

2x70KN hydraulic wheel tensioner

transmission line stringing equipment with warranty

hydraulic wheel tensioner for power lines

Product Description

Transmission Line Stringing Equipment 2x70KN Hydraulic Wheel Tensioner

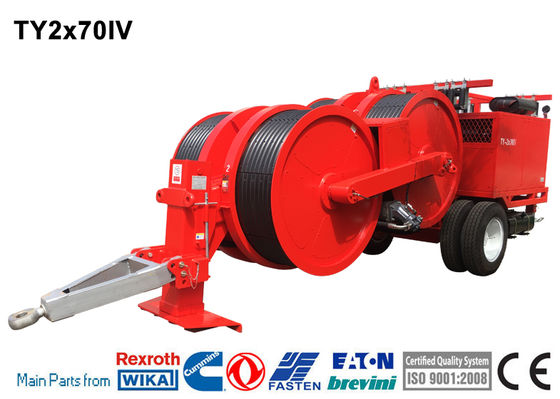

TY2x70IV Hydraulic Tensioner

The machine allows for the tension stringing of four-bundle conductor of 630mm² and below in mountainous and hilly areas, of twin-bundle conductor of 720mm² and below in flat lands, and of conductor 720mm² in various terrains; besides, it can be used for tension stringing of OPGW or ADSS optical cable and 500kV haulage rope in various terrains

Characteristics

Bull-wheel diameter: 1500mm

Max conductor diameter: 40mm

Groove number: 2x8

Total weight: 12000kg

Overall dimension (length*width*height):5500*2280*2700mm

Performance

Max intermittent tension: 2x70/1x140kN

Max continuous tension: 2x65/1x130kN

Speed at max tension: 2.5km/h

Max speed: 5km/h

Pull at max speed: 2x25/1x50kN

Max reverse pulling force: 2*60kN/1*120kN

Max reverse pulling speed: 5km/h

Configuration

2 negative self-acting hydraulic brakes

2 hydraulic dynamometers

Hydraulic oil cooling system

2 digital meter and speed counters

Control instruments for hydraulic system and diesel engine

Hydraulic front stabilizer

Hydraulic power pack to control up to 4 separate drum stands with hydraulic motor

Grounding connection point

Additional Devices

Lighting system for the trailer

4 hydraulic rope/conductor clamp (extra charge)

Swivel guide rope roller

Air brake system for the trailer (extra charge)

Digital Speed and meter counter

Hydraulic Transmission

The machine can realize step less speed.

The machine is provided with tension presetting system.

Main configuration

Engine: Cummins

Hydraulic pump: German Rexroth/Dnish Danfoss

Main motor:German Rexroth/French Leduc

Speed reducer: German Rexroth / Italy Bonfiglioli

Main hydraulic valves: USA Sun / Italy ATOS

Engine

Diesel: 77kw(103hp)

Cooling system: water

Electrical system: 24V

Transmission Line Stringing Equipment 2x70KN Hydraulic Wheel Tensioner 0
