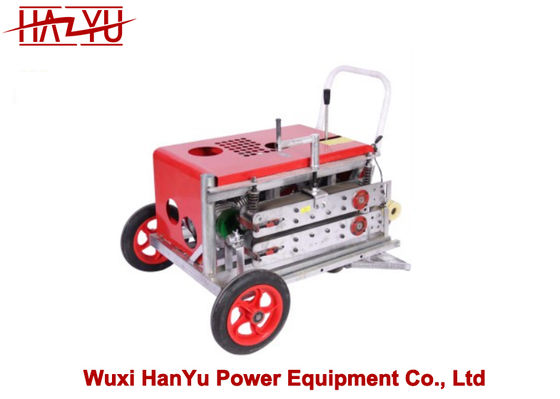

Name: Optical Cable Pulling Machine 2KN Traction Force 50mm Diameter
Brand: Wuxi Hanyu power equipment co.,ltd
SKU: BGLQYS
Availability: InStock

MOQ:	1set
Price:	Negotiable
Standard Packaging:	case
Delivery Period:	15-35days
Payment Method:	L/C, T/T
Supply Capacity:	1000sets/month.

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

HANYU

Certification

ISO9001

Model Number

BGLQYS

Traction Force (KN):

≥2KN

Maximum Diameter(mm):

50mm

Traction Speed (m/min):

30-80 M/min Adjustable

Maximum Power Of Gasoline Engine (KW):

4.78KW

Start Type:

Hand Rope Start

Type:

Optical Cable Pulling Machine

Highlight:

optical cable pulling machine 2KN

cable pulling machine 50mm diameter

transmission line stringing equipment with warranty

Product Description

Transmission Line Stringing Equipment Optical Cable Pulling Machine

Model	BGLQYS	BGLQYD
Start type	Hand rope start	Electric start
Maximum diameter	50mm
Traction force	≥2KN
Traction speed	30-80 m/min adjustable
Maximum power of gasoline engine	4.78KW

Uses	The optical cable traction machine is suitable for 4-288 core optical cable, 72.6mm steel stranded wire, 435mm2 cable. It is used for long distance transmission of large section cable, especially suitable for long distance laying of various types of cables such as tunnel, pipe row, directly buried, etc.
Introduction	This machine is mainly composed of three parts: engine, gearbox and transmission device. The jaws of the transmission device are opened and closed up and down to make way for the cables to be effectively retracted and released freely. The traction machine uses the electric motor as the power source. The main shaft gear chain is driven by the gearbox. The chain engages the transmission device and drives the transmission belt to achieve linear motion. The machine is also equipped with a support rod to support the reaction force of the cable during machine operation and maintain the transmission line. The machine does not move while the cable is being cabled.
Advantage	Optical cable traction equipment can save artificial 2 people, tensile force is equivalent to 4-5 adult tensile force, can push threader, can pull optical cable, can be overhead, can be buried construction operation, does not hurt the cable.It can reduce construction cost and improve construction efficiency.
Packing details	Standard export wooden case packing for Optical cable tractor

Optical Cable Pulling Machine 2KN Traction Force 50mm Diameter 0
