Name: Powerline Lock Nut Hydraulic Cylinder Power Lineman Tools 10T Tonnage
Brand: Wuxi Hanyu power equipment co.,ltd
SKU: CLL-1050
Availability: InStock

MOQ:	50pieces
Price:	Negotiable
Standard Packaging:	CASE
Delivery Period:	15-35days
Payment Method:	L/C, T/T
Supply Capacity:	10000pieces/month.

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

HANYU

Certification

ISO9001

Model Number

CLL-1050

Type:

Hydraulic Cylinder For Powerline

Tonnage:

10T

Stroke:

50mm

Closed Height:

150mm

Weight:

5kg

Highlight:

Lock Nut Hydraulic Cylinder

Powerline Hydraulic Cylinder

Hydraulic Cylinder Power Lineman Tools

Product Description

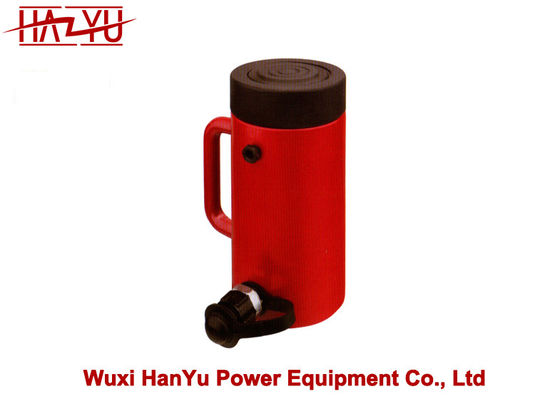

Lineman Tools CLL-1050 Lock Nut Hydraulic Cylinder For Powerline

Lock Nut Cylinder

Safety lock nut for mechanical load holding
Special synthetic coating for improved corrosion resistance and lower friction for smoother operation
Overflow port functions as a storke limiter
Interchangeable, hardened grooved saddles are standard

Model	Tonnage(T)	Stroke(mm)	Closed height(mm)	Weight(kg)
CLL-1050	10	50	150	5
CLL-10100	10	100	210	6.5
CLL-10150	10	150	260	8
CLL-2050	20	50	160	7.5
CLL-20100	20	100	210	9.5
CLL-20150	20	150	260	13
CLL-3050	30	50	160	9.7
CLL-30100	30	100	210	12
CLL-30150	30	150	260	17
CLL-5050	50	50	160	15
CLL-50100	50	100	210	20
CLL-50150	50	150	260	25
CLL-10050	100	50	187	31
CLL-100100	100	100	237	39
CLL-100150	100	150	287	47
CLL-15050	150	50	209	54.5
CLL-150100	150	100	259	66
CLL-150150	150	150	309	79

Lock nut(safety lock nut for safe operation)
Cylinder wall and principal axis(they can avoid eroding and less friction by chrome plate)
O-ring(great effect for sealing and hold longevity)
Brass ring(use high quality of brass to joint, to protect the status of overloading and absorb heaviness on the other side.)

Powerline Lock Nut Hydraulic Cylinder Power Lineman Tools 10T Tonnage 0
