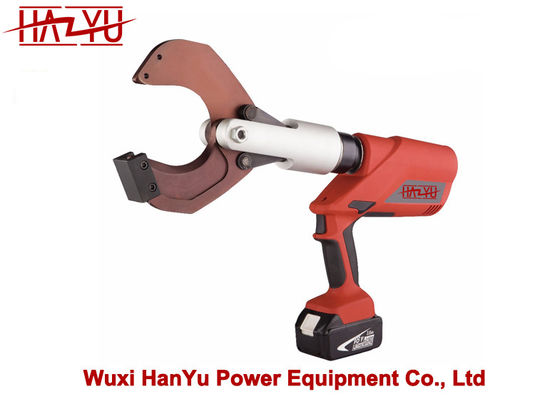

120KN Battery Powered Cable Cutter 18V Battery Operated Wire Cutter
Products

Transmission Line Stringing Equipment

Overhead Line Stringing Equipment

Hydraulic Puller Tensioner

Anti Twisting Steel Wire Rope

Lineman Tools

Powerline Tools

Stringing Pulley

Suspension Ladder

Suspension Platform

Underground Cable Pulling Tools
Contact Us
hanyu_power@163.com
+86 17766397620
Contact Now
120KN Battery Powered Cable Cutter 18V Battery Operated Wire Cutter
  • name
  • name

120KN Battery Powered Cable Cutter 18V Battery Operated Wire Cutter

MOQ: 20pieces
Price: Negotiable
Standard Packaging: Case
Delivery Period: 15-35days
Payment Method: L/C, T/T
Supply Capacity: 3000pieces/month.
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
HANYU
Certification
ISO9001
Model Number
EC-65C
Cutting Force:
120KN
Stroke:
42mm
Cutting Range:
65mm Cu/Al Cable And Armored Cable
Capacity:
3.0Ah
Voltage:
18V
Type:
Battery Powered Cable Cutting Tool Cable Cutter
Highlight:

120kn battery powered cable cutter

,

18v battery operated wire cutter

,

battery powered cable cutter 18v

Product Description

Lineman Tools 120KN Battery Powered Cable Cutting Tool Cable Cutter



Technical Data

Model EC-40A EC-50A EC-65C EC-85A EC-2432A
Cutting force 70KN 70KN 120KN 60KN 120KN
Cutting range

40mm

Cu/Al cable

and

armored cable

50mm

Cu/Al cable

and

armored cable

65mm

Cu/Al cable

and

armored cable

85mm

Cu/Al cable

and

armored cable

 M14-M24

40mm

ACSR cable

50mm

ACSR cable
Stroke 42mm 52mm 42mm 92mm 32mm
Voltage 18V 18V 18V 18V 18V
Capacity 3.0Ah 3.0Ah 3.0Ah 3.0Ah 3.0Ah
Charging time 45minutes 45minutes 45minutes 45minutes 45minutes
Package Plastic case Plastic case Plastic case Plastic case Plastic case
  • EC-40A, Battery cable cutter for Φ40mm Cu/Al cable and armored cable
  • EC-50A, Battery cable cutter for Φ50mm Cu/Al cable and armored cable
  • EC-65C, Battery cable cutter for Φ65mm Cu/Al cable and armored cable
  • EC-85A, Battery cable cutter for Φ85mm Cu/Al cable and armored cable
  • EC-2432A, Battery screw cutter for M14-M24



Accessories

Model EC-40A EC-50A EC-65C EC-85A EC-2432A
Blade 1set 1set 1set 1set 1set
Battery 2pcs 2pcs 2pcs 2pcs 2pcs
Charger

1pc

(AC110-240V,

50-60Hz)

1pc

(AC110-240V,

50-60Hz)

1pc

(AC110-240V,

50-60Hz)

1pc

(AC110-240V,

50-60Hz)

1pc

(AC110-240V,

50-60Hz)

Sealing ring

of cylinder

 1set 1set 1set 1set 1set

Sealing ring

of safety valve

 1set 1set 1set 1set 1set



120KN Battery Powered Cable Cutter 18V Battery Operated Wire Cutter 0
  1. One key control
  2. Cutting head rotates 350°
  3. Two stage hydraulics
  4. Shorter charging cycles
  5. Automatic retraction when crimp is completed
  6. Battery power display



Tags:

lineman hand tools,

electrical lineman tools,

power lineman tools
