Name: Lineman Tools Battery Crimping Tool For Cable Crimping Range 16-300mm2
Brand: Wuxi Hanyu power equipment co.,ltd
SKU: NEC-300C
Availability: InStock

MOQ:	50pieces
Price:	Negotiable
Standard Packaging:	CASE
Delivery Period:	15-35days
Payment Method:	L/C, T/T
Supply Capacity:	10000pieces/month.

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

HANYU

Certification

ISO9001

Model Number

NEC-300C

Type:

Battery Crimping Tool For Cabl

Crimping Range:

16-300mm2

Capacity:

3.0Ah

Crimping Force:

120KN

Crimping Die:

16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300mm2

Stroke:

32mm

Highlight:

120kn lineman tools

120kn lineman hand tools

Product Description

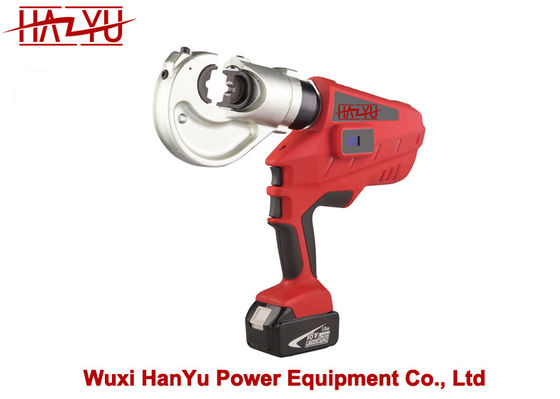

Lineman Tools Battery Crimping Tool For Cable Crimping Range 16-300mm2

Battery Crimping Tool

A Temperature sensor makes the tool stop working automatically when the temperature over 60℃ under long time working, the fault signal sounds, it means the tool can’t continue work until the temperature reduced to the normal.
If a deviation from the set operation pressure or low battery charges is identified, an acoustic signal sounds and a red display flashes.
One key control-press the trigger to start working, half loosing the trigger means stop forcing pressure, loosing fully means piston return to the original position.
Micro computer control system-automatically detects the pressure when in crimping with double safety protect.
The tool is equipped with a double piston pump which characterized with a fast approach towards the connecting material and transfer to high pressure automatically by slow crimping.

Model	NEC-300	NEC-300C	NEC-400	NEC-400U
Crimping force	60KN	120KN	130KN	130KN
Crimping range	16-300mm2	16-300mm2	16-400mm2	16-400mm2
Stroke	17mm	32mm	42mm	20mm
Crimp/charge	320times (Cu150mm2)	320times (Cu150mm2)	120times (Cu150mm2)	120times (Cu150mm2)
Crimping cycle	3-6s (depend on the size of cable)	3-6s (depend on the size of cable)	10-20s (depend on the size of cable)	10-20s (depend on the size of cable)
Voltage	18V	18V	18V	18V
Capacity	3.0Ah	3.0Ah	3.0Ah	3.0Ah
Charging time	45minutes	45minutes	45minutes	45minutes
Package	Plastic case	Plastic case	Plastic case	Plastic case
Crimping die	16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300mm2	16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300mm2	16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300, 400mm2	16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300, 400mm2
Battery	2pcs	2pcs	2pcs	2pcs
Charger	1pc (AC110-240V,50-60Hz)	1pc (AC110-240V,50-60Hz)	1pc (AC110-240V,50-60Hz)	1pc (AC110-240V,50-60Hz)
Sealing ring of cylinder	1set	1set	1set	1set
Sealing ring of safety valve	1set	1set	1set	1set

Battery Multi-Functional Tool	① Head rotates 360°
	② OLED Display (Crimp Times, Pressure, Voltage)
	③ LED Light
	④ Emergency Pressure Release Button
	⑤ All tools can be controlled by one trigger
	⑥ Ergonomic design for one hand operation. Micro computer control system-automatically detect the pressure
	⑦ Li-ion lower power weight ratio with 50% more capacity and shorter charging cycles
