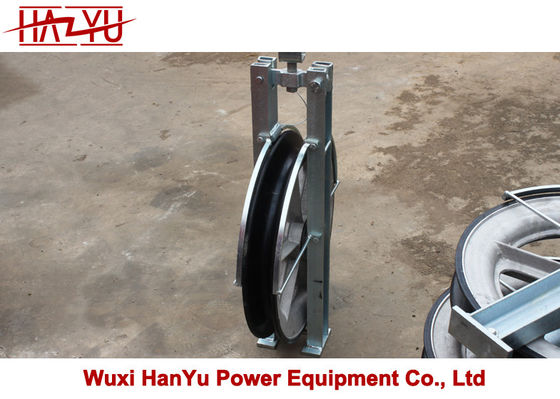

Name: SHD-660X100 Single Conductor Pulley Stringing Pulley Aluminum Rated Load 20kN
Brand: Wuxi Hanyu power equipment co.,ltd
SKU: SHD-660X100
Availability: InStock

MOQ:	30pieces
Price:	Negotiable
Standard Packaging:	Container
Delivery Period:	15-35days
Payment Method:	L/C, T/T
Supply Capacity:	3000pieces/month.

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

HANYU

Certification

ISO9001

Model Number

SHD-660X100

Rated Load:

20kN

Conductor Size:

≤500mm2

Weight:

30kg

Wheel Material:

Aluminum

Wheel Size Diameter X Width:

660X100mm

Type:

SHD-660X100 Single Conductor Pulleys

Highlight:

Single Conductor Pulley

SHD-660X100 Pulley

Conductor Pulley 20kN

Product Description

Stringing Pulley Aluminum SHD-660X100 Single Conductor Pulleys Rated Load 20kN

Model	Wheel size Diameter x Width	Weight	Rated load	Conductor size	Wheel material
Model	(mm)	(kg)	(kN)	(mm2)	Wheel material
SHD-508X75	508X75	22.3	20	≤400	Aluminum
SHD-660X100	660X100	30	20	≤500	Aluminum
SHDN-508X75	508X75	18	20	≤400	Nylon
SHDN-660X100	660X100	20	20	≤500	Nylon
SHDN-822X110	822X110	25	30	≤630	Nylon
SHDN-916X110	916X110	45	50	≤800	Nylon
SHDN-1040X125	1040X125	105	55	≤1000	Nylon
SHDN-1160X150	1160X150	155	45	≤1250	Nylon
SHDNN-255X110	255X110	77	100	≤630	Nylon
SHDNN-325X150	325X150	85	120	≤1520	Nylon
TYSHD Single Aluminum Conductor Pulleys
Wheel material aluminum or Nylon, and it could be covered by rubber.

SHD-660X100 Single Conductor Pulley Stringing Pulley Aluminum Rated Load 20kN 0
