Transmission Line Stringing Equipment 2x70kN Hydraulic Laying Tension Machine
| MOQ: | 1set |
| Price: | USD79,000-85,000/set |
| Standard Packaging: | Container |
| Delivery Period: | 15-35days |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 10Sets/Month |
2x70kN hydraulic tension machine
,transmission line stringing equipment
,hydraulic laying tension machine
Transmission Line Stringing Equipment 2x70kN Hydraulic Laying Tension Machine
| Performance | Max intermittent tension | 2x70kN |
| Max continuous tension | 2x60kN | |
| Max reverse pulling speed | 3km/h | |
| Max reverse pulling force | 2*60kN/1*120kN | |
| Max speed | 5km/h | |
| Speed at max tension | 2.5km/h | |
| Pull at max speed | 2x30kN/1x60kN | |
| Characteristics | Max conductor diameter | 45mm |
| Total weight | 11500kg | |
| Groove number | 2x6 | |
| Bull-wheel diameter | 1700mm | |
| Overall dimension (length*width*height) | 5500*2460*2900mm | |
| Main configuration | Engine | Cummins |
| Speed reducer | German Rexroth / Italy Bonfiglioli | |
| Main hydraulic valves | USA Sun / Italy ATOS | |
| Hydraulic pump | German Rexroth/Dnish Danfoss | |
| Main motor | German Rexroth/French Leduc | |
| Engine | Diesel | 77kw(103hp) |
| Cooling system | water | |
| Electrical system | 24V |

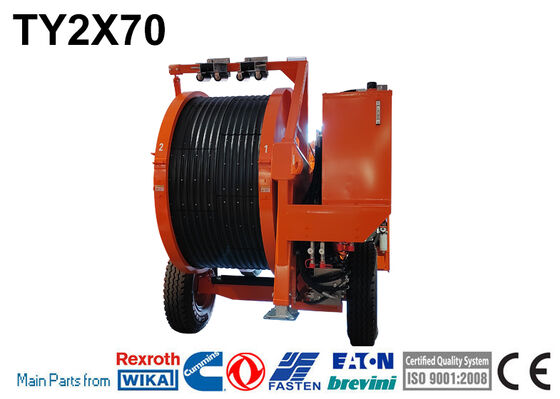

| TY2x70 Hydraulic Tensioner |
The machine allows for the tension stringing of twin-bundle conductor of 630mm2 and below in mountainous and hilly areas, of twin-bundle conductor of 720mm2 and below in flat lands, and of conductor 720mm2 in various terrains; |
|
|
Besides, it can be used for tension stringing of OPGW or ADSS optical cable and 500kV haulage rope in various terrains |
||
| Configuration |
|
2 negative self-acting hydraulic brakes |
|
Hydraulic power pack to control up to 2 separate drum stands with hydraulic motor |
|
Hydraulic oil cooling system |
| Control instruments for hydraulic system and diesel engine |
|
2 digital meter and speed counters |
|
2 hydraulic dynamometers |
|
Rigid axle for towing at max speed of 15km/h with mechanical parking brake |
|
Grounding connection point |
| Hydraulic Transmission |
|
The machine can realize step less speed. |
|
The machine is provided with tension presetting system. |
| Additional Devices |
|
Digital speed and meter counter |
| Lighting system for the trailer |
|
Swivel guide rope roller |
|
Trailer for towing at max speed of 15 km/h |
|
2 hydraulic rope/conductor clamp (extra charge) |
|
Air brake system for the trailer (extra charge) |
