Name: Max Intermittent Tension 2x70kN Hydraulic Tensioner With Conductor Clamp
Brand: Wuxi Hanyu power equipment co.,ltd
SKU: TY2x70-3
Price: 82.00 USD
Availability: InStock

MOQ:	1set
Price:	USD79,000-85,000/set
Standard Packaging:	Container
Delivery Period:	15-35days
Payment Method:	L/C, T/T
Supply Capacity:	10Sets/Month

Details Information

Product Description

Detail Information

Place of Origin

China

Brand Name

HANYU

Certification

ISO9001

Model Number

TY2x70-3

Type:

TY2x70 Hydraulic Cable Tensioner

Max Intermittent Tension:

2x70kN

Max Reverse Pulling Speed:

3km/h

Max Conductor Diameter:

45mm

Max Reverse Pulling Force:

2*60kN/1*120kN

Total Weight:

11500kg

Highlight:

2x70kN hydraulic tensioner

hydraulic tensioner with conductor clamp

transmission line stringing equipment

Product Description

Max Intermittent Tension 2x70kN Hydraulic Tensioner With Conductor Clamp

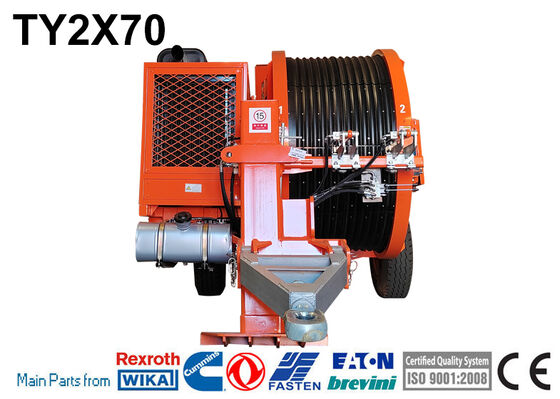

TY2x70 Hydraulic Tensioner
The machine allows for the tension stringing of twin-bundle conductor of 630mm² and below in mountainous and hilly areas, of twin-bundle conductor of 720mm² and below in flat lands, and of conductor 720mm² in various terrains;
Besides, it can be used for tension stringing of OPGW or ADSS optical cable and 500kV haulage rope in various terrains

Max intermittent tension	2x70kN
Max continuous tension	2x60kN
Max reverse pulling speed	3km/h
Pull at max speed	2x30kN/1x60kN
Max speed	5km/h
Speed at max tension	2.5km/h
Max reverse pulling force	260kN/1120kN
Max conductor diameter	45mm
Bull-wheel diameter	1700mm
Total weight	11500kg
Groove number	2x6
Overall dimension (lengthwidthheight)	550024602900mm
Engine	Cummins
Speed reducer	German Rexroth / Italy Bonfiglioli
Main motor	German Rexroth/French Leduc
Hydraulic pump	German Rexroth/Dnish Danfoss
Main hydraulic valves	USA Sun / Italy ATOS
Diesel	77kw(103hp)
Cooling system	water
Electrical system	24V

Configuration	2 negative self-acting hydraulic brakes
	2 hydraulic dynamometers
	Hydraulic oil cooling system
	2 digital meter and speed counters
	Control instruments for hydraulic system and diesel engine
	Rigid axle for towing at max speed of 15km/h with mechanical parking brake
	Hydraulic power pack to control up to 2 separate drum stands with hydraulic motor
	Grounding connection point

Hydraulic Transmission	The machine can realize step less speed.
	The machine is provided with tension presetting system.

Additional Devices	Lighting system for the trailer
	2 hydraulic rope/conductor clamp (extra charge)
	Swivel guide rope roller
	Trailer for towing at max speed of 15 km/h
	Digital speed and meter counter
	Air brake system for the trailer (extra charge)
