2x70KN Transmission Line Stringing Equipment Hydraulic Cable Laying Tensioner
  • name
  • name

2x70KN Transmission Line Stringing Equipment Hydraulic Cable Laying Tensioner

MOQ: 1set
Price: USD80,500-84,000/set
Standard Packaging: Container
Delivery Period: 15-35days
Payment Method: L/C, T/T
Supply Capacity: 10Sets/Month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
HANYU
Certification
ISO9001
Model Number
TY2x70-12
Max Intermittent Tension:
2x70kN
Max Continuous Tension:
2x60kN
Type:
Stringing Equipment Hydraulic Cable Laying Tensioner
Max Reverse Pulling Speed:
3km/h
Max Reverse Pulling Force:
2*60kN/1*120kN
Pull At Max Speed:
2x30kN/1x60kN
Highlight:

hydraulic cable laying tensioner

,

transmission line stringing equipment

,

70KN cable tensioner

Product Description

2x70KN Transmission Line Stringing Equipment Hydraulic Cable Laying Tensioner

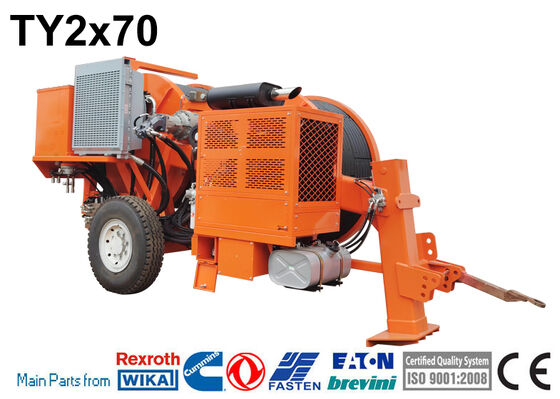

TY2x70 Hydraulic Tensioner

The machine allows for the tension stringing of twin-bundle conductor of 630mm2 and below in mountainous and hilly areas, of twin-bundle conductor of 720mm2 and below in flat lands, and of conductor 720mm2 in various terrains;

besides, it can be used for tension stringing of OPGW or ADSS optical cable and 500kV haulage rope in various terrains



Characteristics
Max intermittent tension 2x70kN
Max continuous tension 2x60kN
Speed at max tension 2.5km/h
Max speed 5km/h
Pull at max speed 2x30kN/1x60kN
Max reverse pulling force 2*60kN/1*120kN
Max reverse pulling speed 3km/h

Performance
Bull-wheel diameter 1700mm
Max conductor diameter 45mm
Groove number 2x6
Total weight 9000kg
Overall dimension (length*width*height) 4700*2300*2700mm

Main configuration
Engine Cummins
Hydraulic pump German Rexroth/Dnish Danfoss
Main motor German Rexroth/French Leduc
Speed reducer German Rexroth / Italy Bonfiglioli
Main hydraulic valves USA Sun / Italy ATOS
Engine
Diesel 77kw(103hp)
Cooling system water
Electrical system 24V
Configuration

2 negative self-acting hydraulic brakes

2 digital meter and speed counters
Rigid axle for towing at max speed of 15km/h with mechanical parking brake

2 hydraulic dynamometers

Control instruments for hydraulic system and diesel engine
Hydraulic oil cooling system
Additional Devices

Swivel guide rope roller
Air brake system for the trailer
Lighting system for the trailer

Trailer for towing at max speed of 15 km/h

2 hydraulic rope/conductor clamp (extra charge)

Digital speed and meter counter
Hydraulic Transmission

The machine is provided with tension presetting system.

The machine can realize step less speed.



2x70KN Transmission Line Stringing Equipment Hydraulic Cable Laying Tensioner 0
