Stringing Equipment 2x70kN Hydraulic Cable Tensioner for Overhead Line
  • name
  • name

Stringing Equipment 2x70kN Hydraulic Cable Tensioner for Overhead Line

MOQ: 1set
Price: USD80,500-84,000/set
Standard Packaging: Container
Delivery Period: 15-35days
Payment Method: L/C, T/T
Supply Capacity: 10Sets/Month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
HANYU
Certification
ISO9001
Model Number
TY2x70-10
Type:
Hydraulic Cable Tensioner For Overhead Line
Max Intermittent Tension:
2x70kN
Max Reverse Pulling Force:
2*60kN/1*120kN
Pull At Max Speed:
2x30kN/1x60kN
Max Reverse Pulling Speed:
3km/h
Bull-wheel Diameter:
1700mm
Highlight:

2x70kN hydraulic cable tensioner

,

overhead line stringing equipment

,

transmission line hydraulic tensioner

Product Description

Stringing Equipment 2x70kN Hydraulic Cable Tensioner for Overhead Line

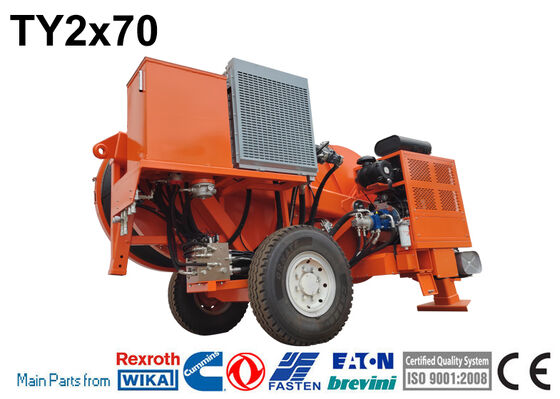

TY2x70 Hydraulic Tensioner
  • The machine allows for the tension stringing of twin-bundle conductor of 630mm2 and below in mountainous and hilly areas, of twin-bundle conductor of 720mm2 and below in flat lands, and of conductor 720mm2 in various terrains;
  • besides, it can be used for tension stringing of OPGW or ADSS optical cable and 500kV haulage rope in various terrains



Performance
  • Max intermittent tension: 2x70kN
  • Max continuous tension: 2x60kN
  • Max reverse pulling force: 2*60kN/1*120kN
  • Max reverse pulling speed: 3km/h
  • Pull at max speed: 2x30kN/1x60kN
  • Speed at max tension: 2.5km/h
  • Max speed: 5km/h



Main configuration
  • Engine: Cummins
  • Main hydraulic valves: USA Sun / Italy ATOS
  • Main motor: German Rexroth/French Leduc
  • Hydraulic pump: German Rexroth/Dnish Danfoss
  • Speed reducer: German Rexroth / Italy Bonfiglioli



Characteristics
  • Max conductor diameter: 45mm
  • Bull-wheel diameter: 1700mm
  • Total weight: 9000kg
  • Groove number: 2x6
  • Overall dimension (length*width*height): 4700*2300*2700mm



Hydraulic Transmission
  • The machine can realize step less speed.
  • The machine is provided with tension presetting system.



Engine
  • Diesel: 77kw(103hp)
  • Cooling system: water
  • Electrical system: 24V



Additional Devices
  • Trailer for towing at max speed of 15 km/h
  • 2 hydraulic rope/conductor clamp (extra charge)
  • Swivel guide rope roller
  • Air brake system for the trailer
  • Digital speed and meter counter
  • Lighting system for the trailer



Configuration
  • 2 negative self-acting hydraulic brakes
  • Control instruments for hydraulic system and diesel engine
  • 2 hydraulic dynamometers
  • 2 digital meter and speed counters
  • Hydraulic oil cooling system
  • Rigid axle for towing at max speed of 15km/h with mechanical parking brake


Stringing Equipment 2x70kN Hydraulic Cable Tensioner for Overhead Line 0
