Name: Transmission Line Stringing Equipment Hydraulic 2x70KN Power Tensioner
Brand: Wuxi Hanyu power equipment co.,ltd
SKU: TY2x70-6
Price: 82.00 USD
Availability: InStock

MOQ:	1set
Price:	USD80,500-84,000/set
Standard Packaging:	Container
Delivery Period:	15-35days
Payment Method:	L/C, T/T
Supply Capacity:	10Sets/Month

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

HANYU

Certification

ISO9001

Model Number

TY2x70-6

Type:

Stringing Equipment Hydraulic 2x70KN Power Tensioner

Max Intermittent Tension:

2x70kN

Max Reverse Pulling Force:

2*60kN/1*120kN

Bull-wheel Diameter:

1700mm

Max Conductor Diameter:

45mm

Pull At Max Speed:

2x30kN/1x60kN

Highlight:

hydraulic transmission line tensioner

70KN power tensioner equipment

transmission line stringing equipment

Product Description

Transmission Line Stringing Equipment Hydraulic 2x70KN Power Tensioner

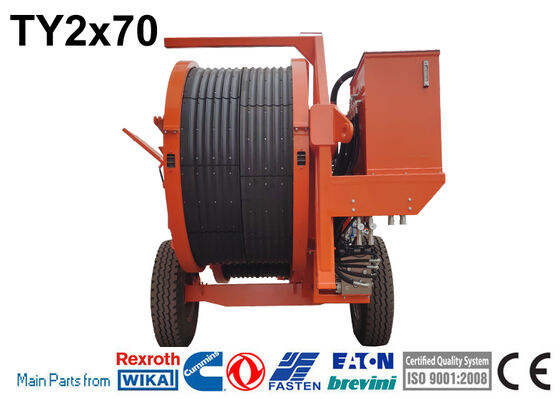

TY2x70 Hydraulic Tensioner

The machine allows for the tension stringing of twin-bundle conductor of 630mm² and below in mountainous and hilly areas, of twin-bundle conductor of 720mm² and below in flat lands, and of conductor 720mm² in various terrains;
besides, it can be used for tension stringing of OPGW or ADSS optical cable and 500kV haulage rope in various terrains

Performance

Max intermittent tension: 2x70kN
Max continuous tension: 2x60kN
Pull at max speed: 2x30kN/1x60kN
Speed at max tension: 2.5km/h
Max speed: 5km/h
Max reverse pulling speed: 3km/h
Max reverse pulling force: 2*60kN/1*120kN

Characteristics

Groove number: 2x6
Bull-wheel diameter: 1700mm
Total weight: 9000kg
Max conductor diameter: 45mm
Overall dimension (length*width*height):4700*2300*2700mm

Main configuration

Engine: Cummins
Main hydraulic valves: USA Sun / Italy ATOS
Main motor: German Rexroth/French Leduc
Hydraulic pump: German Rexroth/Dnish Danfoss
Speed reducer: German Rexroth / Italy Bonfiglioli

Engine

Diesel: 77kw(103hp)
Cooling system: water
Electrical system: 24V

Configuration

Control instruments for hydraulic system and diesel engine
Hydraulic oil cooling system
2 hydraulic dynamometers
2 negative self-acting hydraulic brakes
Rigid axle for towing at max speed of 15km/h with mechanical parking brake
2 digital meter and speed counters

Hydraulic Transmission

The machine can realize step less speed.
The machine is provided with tension presetting system.

Additional Devices

Lighting system for the trailer
Air brake system for the trailer
Swivel guide rope roller
Trailer for towing at max speed of 15 km/h
2 hydraulic rope/conductor clamp (extra charge)
Digital speed and meter counter

Transmission Line Stringing Equipment Hydraulic 2x70KN Power Tensioner 0
