Name: Transmission Line Stringing Equipment Hydraulic 2x70KN Line Tensioner
Brand: Wuxi Hanyu power equipment co.,ltd
SKU: TY2x70-5
Price: 82.00 USD
Availability: InStock

MOQ:	1set
Price:	USD80,500-84,000/set
Standard Packaging:	Container
Delivery Period:	15-35days
Payment Method:	L/C, T/T
Supply Capacity:	10Sets/Month

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

HANYU

Certification

ISO9001

Model Number

TY2x70-5

Type:

Hydraulic 2x70KN Line Tensioner

Max Intermittent Tension:

2x70kN

Max Continuous Tension:

2x60kN

Bull-wheel Diameter:

1700mm

Max Conductor Diameter:

45mm

Overall Dimension (length*width*height):

4700*2300*2700mm

Highlight:

Hydraulic 2x70KN line tensioner

Transmission line stringing equipment

70KN hydraulic tensioner for power lines

Product Description

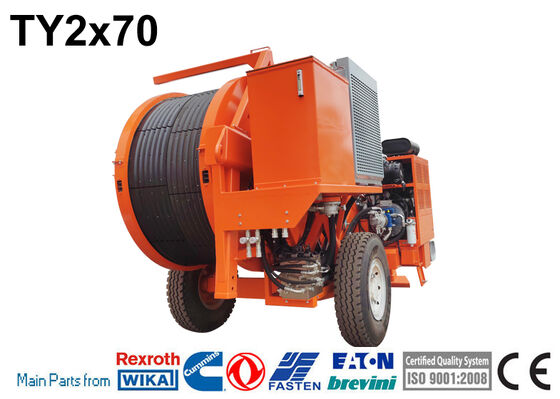

Transmission Line Stringing Equipment Hydraulic 2x70KN Line Tensioner

TY2x70 Hydraulic Tensioner	The machine allows for the tension stringing of twin-bundle conductor of 630mm² and below in mountainous and hilly areas, of twin-bundle conductor of 720mm² and below in flat lands, and of conductor 720mm² in various terrains; besides, it can be used for tension stringing of OPGW or ADSS optical cable and 500kV haulage rope in various terrains
Performance	Max intermittent tension: 2x70kN Max continuous tension: 2x60kN Max speed: 5km/h Pull at max speed: 2x30kN/1x60kN Speed at max tension: 2.5km/h Max reverse pulling speed: 3km/h Max reverse pulling force: 260kN/1120kN
Characteristics	Groove number: 2x6 Max conductor diameter: 45mm Bull-wheel diameter: 1700mm Total weight: 9000kg Overall dimension (lengthwidthheight):470023002700mm
Main configuration	Engine: Cummins Main motor: German Rexroth/French Leduc Main hydraulic valves: USA Sun / Italy ATOS Hydraulic pump: German Rexroth/Dnish Danfoss Speed reducer: German Rexroth / Italy Bonfiglioli
Engine	Diesel: 77kw(103hp) Cooling system: water Electrical system: 24V
Configuration	Control instruments for hydraulic system and diesel engine 2 negative self-acting hydraulic brakes 2 hydraulic dynamometers Rigid axle for towing at max speed of 15km/h with mechanical parking brake Hydraulic oil cooling system 2 digital meter and speed counters
Hydraulic Transmission	The machine can realize step less speed. The machine is provided with tension presetting system.
Additional Devices	Lighting system for the trailer Swivel guide rope roller Air brake system for the trailer 2 hydraulic rope/conductor clamp (extra charge) Trailer for towing at max speed of 15 km/h Digital speed and meter counter

Transmission Line Stringing Equipment Hydraulic 2x70KN Line Tensioner 0
