Transmission Line Stringing Equipment TY2x70 Hydraulic Tension Machine
  • name
  • name

Transmission Line Stringing Equipment TY2x70 Hydraulic Tension Machine

MOQ: 1set
Price: USD80,500-84,000/set
Standard Packaging: Container
Delivery Period: 15-35days
Payment Method: L/C, T/T
Supply Capacity: 10Sets/Month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
HANYU
Certification
ISO9001
Model Number
TY2x70-3
Max Intermittent Tension:
2x70kN
Max Continuous Tension:
2x60kN
Bull-wheel Diameter:
1700mm
Max Conductor Diameter:
45mm
Speed At Max Tension:
2.5km/h
Type:
TY2x70 Hydraulic Tension Machine
Highlight:

TY2x70 hydraulic tension machine

,

transmission line stringing equipment

,

hydraulic tension machine for power lines

Product Description

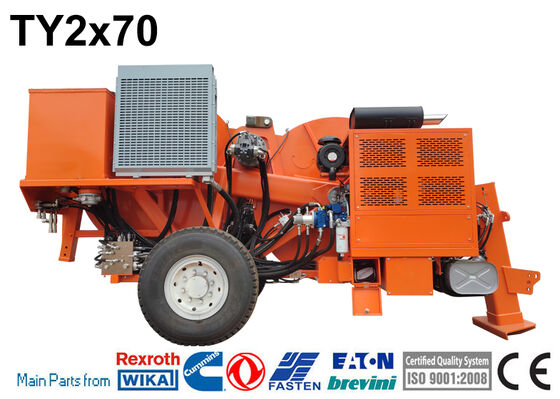

Transmission Line Stringing Equipment TY2x70 Hydraulic Tension Machine



TY2x70 Hydraulic Tensioner
The machine allows for the tension stringing of twin-bundle conductor of 630mm2 and below in mountainous and hilly areas, of twin-bundle conductor of 720mm2 and below in flat lands, and of conductor 720mm2 in various terrains; besides, it can be used for tension stringing of OPGW or ADSS optical cable and 500kV haulage rope in various terrains
Characteristics
Bull-wheel diameter

1700mm
Max conductor diameter 45mm
Groove number 2x6
Total weight 9000kg
Overall dimension (length*width*height) 4700*2300*2700mm
Performance
Max intermittent tension 2x70kN
Max continuous tension 2x60kN
Speed at max tension 2.5km/h
Max speed 5km/h
Pull at max speed 2x30kN/1x60kN
Max reverse pulling force 2*60kN/1*120kN
Max reverse pulling speed 3km/h
Main configuration
Engine Cummins
Hydraulic pump German Rexroth/Dnish Danfoss
Main hydraulic valves USA Sun / Italy ATOS
Speed reducer German Rexroth / Italy Bonfiglioli
Main motor German Rexroth/French Leduc
Engine
Diesel 77kw(103hp)
Electrical system 24V
Cooling system water





Additional Devices

  • Lighting system for the trailer
  • Air brake system for the trailer
  • 2 hydraulic rope/conductor clamp (extra charge)
  • Trailer for towing at max speed of 15 km/h
  • Swivel guide rope roller
  • Digital speed and meter counter



Configuration

  • 2 hydraulic dynamometers
  • Rigid axle for towing at max speed of 15km/h with mechanical parking brake
  • Hydraulic oil cooling system
  • 2 digital meter and speed counters
  • 2 negative self-acting hydraulic brakes
  • Control instruments for hydraulic system and diesel engine



Hydraulic Transmission

  • The machine can realize step less speed.
  • The machine is provided with tension presetting system.



Transmission Line Stringing Equipment TY2x70 Hydraulic Tension Machine 0
