Transmission Line Stringing Equipment Hydraulic Pulling Cable Tensioner

MOQ:	1set
Price:	USD80,500-84,000/set
Standard Packaging:	Container
Delivery Period:	15-35days
Payment Method:	L/C, T/T
Supply Capacity:	10Sets/Month

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

HANYU

Certification

ISO9001

Model Number

TY2x70-2

Type:

Hydraulic Pulling Cable Tensioner

Max Intermittent Tension:

2x70kN

Max Reverse Pulling Speed:

3km/h

Max Reverse Pulling Force:

2*60kN/1*120kN

Max Continuous Tension:

2x60kN

Speed At Max Tension:

2.5km/h

Highlight:

hydraulic cable tensioner for transmission lines

transmission line stringing equipment with warranty

pulling cable tensioner for power lines

Product Description

Transmission Line Stringing Equipment Hydraulic Pulling Cable Tensioner

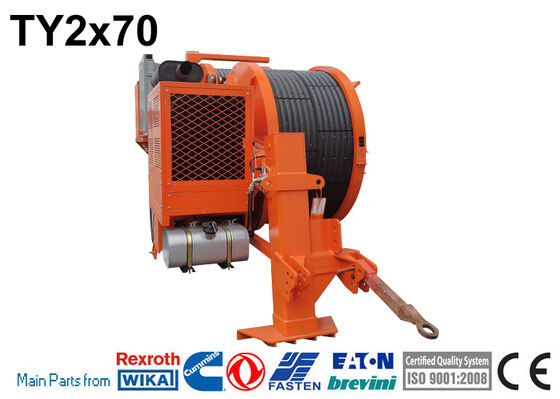

TY2x70 Hydraulic Tensioner

The machine allows for the tension stringing of twin-bundle conductor of 630mm² and below in mountainous and hilly areas, of twin-bundle conductor of 720mm² and below in flat lands, and of conductor 720mm² in various terrains; besides, it can be used for tension stringing of OPGW or ADSS optical cable and 500kV haulage rope in various terrains

Characteristics
Bull-wheel diameter	1700mm
Max conductor diameter	45mm
Groove number	2x6
Total weight	9000kg
Overall dimension (lengthwidthheight)	470023002700mm
Performance
Max intermittent tension	2x70kN
Max continuous tension	2x60kN
Speed at max tension	2.5km/h
Max speed	5km/h
Pull at max speed	2x30kN/1x60kN
Max reverse pulling force	260kN/1120kN
Max reverse pulling speed	3km/h

Main configuration

Engine: Cummins

Hydraulic pump: German Rexroth/Dnish Danfoss

Main motor:German Rexroth/French Leduc

Speed reducer: German Rexroth / Italy Bonfiglioli

Main hydraulic valves: USA Sun / Italy ATOS

Engine

Diesel 77kw(103hp)

Cooling system water

Electrical system 24V

Hydraulic Transmission

The machine can realize step less speed.

The machine is provided with tension presetting system.

Additional Devices

Lighting system for the trailer

2 hydraulic rope/conductor clamp (extra charge)

Swivel guide rope roller

Trailer for towing at max speed of 15 km/h

Digital speed and meter counter

Air brake system for the trailer

Configuration

2 negative self-acting hydraulic brakes

2 hydraulic dynamometers

Hydraulic oil cooling system

2 digital meter and speed counters

Control instruments for hydraulic system and diesel engine

Rigid axle for towing at max speed of 15km/h with mechanical parking brake

Transmission Line Stringing Equipment Hydraulic Pulling Cable Tensioner 0
