Transmission Line Stringing Equipment 2x40KN Hydraulic Wheel Tensioner
  • name
  • name

Transmission Line Stringing Equipment 2x40KN Hydraulic Wheel Tensioner

MOQ: 1set
Price: USD57,500-61,000/set
Standard Packaging: Container
Delivery Period: 15-35days
Supply Capacity: 10Sets/Month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
HANYU
Certification
ISO9001
Model Number
TY2x40-1800
Max Continuous Tension:
2x40kN
Type:
Stringing Equipment Hydraulic Wheel Tensioner
Engine:
Cummins
Main Hydraulic Valves:
German Rexroth / Italy Bonfiglioli
Speed Reducer:
2x20kN
Max Reverse Pulling Speed:
5km/h
Highlight:

2x40KN hydraulic wheel tensioner

,

transmission line stringing equipment

,

hydraulic wheel tensioner for power lines

Product Description

Transmission Line Stringing Equipment 2x40KN Hydraulic Wheel Tensioner



TY2x40-1800 Hydraulic Tensioner The machine allows for the tension stringing of twin-bundle conductor of 630mm2 and below in mountainous and hilly areas, of twin-bundle conductor of 720mm2 and below in flat lands, and of conductor 720mm2 in various terrains; besides, it can be used for tension stringing of OPGW or ADSS optical cable and 500kV haulage rope in various terrains



Characteristics Bull-wheel diameter 1800mm
Max conductor diameter 40mm
Groove number 2x5
Total weight 7790kg
Overall dimension (length*width*height) 4600×2250×2700mm



Performance Max intermittent tension 2x45kN
Max continuous tension 2x40kN
Speed at max tension 2.5km/h
Max speed 5km/h
Pull at max speed 2x20kN
Max reverse pulling force 2x35kN
Max reverse pulling speed 5km/h



Engine Diesel 77kw(103hp)
Cooling system water
Electrical system 24V



Main configuration Engine Cummins
Hydraulic pump German Rexroth/Dnish Danfoss
Main motor German Rexroth/French Leduc
Speed reducer German Rexroth / Italy Bonfiglioli
Main hydraulic valves USA Sun / Italy ATOS



Configuration Hydraulic oil cooling system
  Grounding connection point
  Hydraulic power pack to control up to 2 separated drum stands with hydraulic motor
  Hydraulic dynamometers
  Hydraulic front stabilizer
  Digital speed and meter counter



Additional Devices 2 hydraulic rope/conductor clamp(extra charge)
  Digital speed and meter counter
  Lighting system for the trailer
  Swivel guide rope roller
  Trailer for towing at max speed of 15 km/h



Hydraulic Transmission The machine can realize step less speed.
  The machine is provided with tension presetting system.

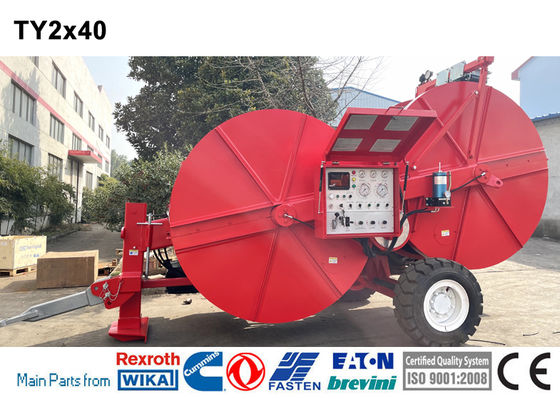

Transmission Line Stringing Equipment 2x40KN Hydraulic Wheel Tensioner 0
