TY2x40-1800 2x40kN Wire Power Laying Tensioner Overhead Transmission Line
  • name
  • name

TY2x40-1800 2x40kN Wire Power Laying Tensioner Overhead Transmission Line

MOQ: 1set
Price: USD57,500-61,000/set
Standard Packaging: Container
Delivery Period: 15-35days
Supply Capacity: 10Sets/Month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
HANYU
Certification
ISO9001
Model Number
TY2x40-1800
Type:
2x40kN Wire Power Laying Tensioner
Max Continuous Tension:
2x40kN
Max Intermittent Tension:
2x45kN
Max Reverse Pulling Force:
2x35kN
Max Reverse Pulling Speed:
5km/h
Engine:
Cummins
Highlight:

2x40kN wire tensioner for transmission lines

,

overhead line power laying tensioner

,

transmission line stringing equipment with warranty

Product Description

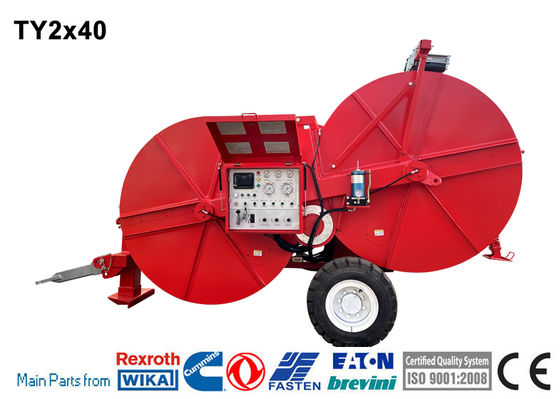

TY2x40-1800 2x40kN Wire Power Laying Tensioner Overhead Transmission Line



TY2x40-1800 Hydraulic Tensioner
  • Hydraulic tensioner allows for the tension stringing of twin-bundle conductor of 630mm2 and below in mountainous and hilly areas, of twin-bundle conductor of 720mm2 and below in flat lands, and of conductor 720mm2 in various terrains;
  • Besides, hydraulic tensioner can be used for tension stringing of OPGW or ADSS optical cable and 500kV haulage rope in various terrains
Product Parameters
  • Max conductor diameter: 40mm
  • Bull-wheel diameter: 1800mm
  • Total weight: 7790kg
  • Groove number: 2x5
  • Overall dimension (length*width*height): 4600×2250×2700mm
  • Max continuous tension: 2x40kN
  • Max intermittent tension: 2x45kN
  • Max speed: 5km/h
  • Speed at max tension: 2.5km/h
  • Max reverse pulling speed: 5km/h
  • Max reverse pulling force: 2x35kN
  • Pull at max speed: 2x20kN



Hydraulic Transmission
  • The machine is provided with tension presetting system.
  • The machine can realize step less speed.



Main configuration
  • Engine: Cummins
  • Speed reducer: German Rexroth / Italy Bonfiglioli
  • Hydraulic pump: German Rexroth/Dnish Danfoss
  • Main hydraulic valves: USA Sun / Italy ATOS
  • Main motor: German Rexroth/French Leduc
Engine
  • Diesel: 77kw(103hp)
  • Cooling system: water
  • Electrical system: 24V



Additional Devices
  • Trailer for towing at max speed of 15 km/h
  • Lighting system for the trailer
  • 2 hydraulic rope/conductor clamp(extra charge)
  • Digital speed and meter counter
  • Swivel guide rope roller
Configuration
  • Digital speed and meter counter
  • Hydraulic dynamometers
  • Hydraulic oil cooling system
  • Hydraulic power pack to control up to 2 separated drum stands with hydraulic motor
  • Hydraulic front stabilizer
  • Grounding connection point

TY2x40-1800 2x40kN Wire Power Laying Tensioner Overhead Transmission Line 0
