Transmission Line Stringing Equipment 2x40KN Electric Hydraulic Tensioner
  • name
  • name

Transmission Line Stringing Equipment 2x40KN Electric Hydraulic Tensioner

MOQ: 1set
Price: USD57,500-61,000/set
Standard Packaging: Container
Delivery Period: 15-35days
Supply Capacity: 10Sets/Month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
HANYU
Certification
ISO9001
Model Number
TY2x40-1800
Type:
2x40KN Electric Hydraulic Tensioner
Max Continuous Tension:
2x40kN
Max Intermittent Tension:
2x45kN
Speed At Max Tension:
2.5km/h
Max Conductor Diameter:
40mm
Engine:
Cummins
Highlight:

electric hydraulic tensioner for transmission lines

,

40KN transmission line stringing equipment

,

hydraulic tensioner with 2x40KN capacity

Product Description

Transmission Line Stringing Equipment 2x40KN Electric Hydraulic Tensioner

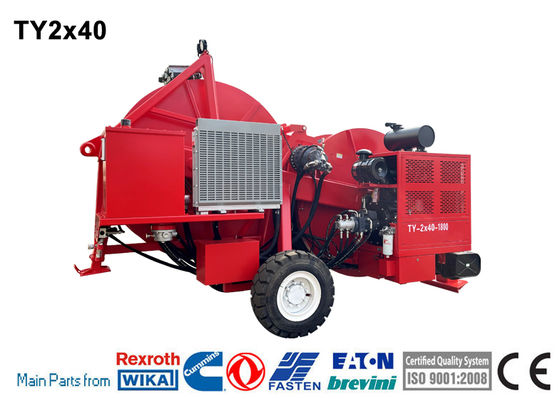

TY2x40-1800 Hydraulic Tensioner
  • The machine allows for the tension stringing of twin-bundle conductor of 630mm2 and below in mountainous and hilly areas, of twin-bundle conductor of 720mm2 and below in flat lands, and of conductor 720mm2 in various terrains;
  • Besides, it can be used for tension stringing of OPGW or ADSS optical cable and 500kV haulage rope in various terrains
Characteristics
Max conductor diameter: 40mm
Bull-wheel diameter: 1800mm

Total weight: 7790kg
Groove number: 2x5
Overall dimension (length*width*height): 4600×2250×2700mm

Performance

Max continuous tension: 2x40kN
Max intermittent tension: 2x45kN
Max speed: 5km/h
Speed at max tension: 2.5km/h
Max reverse pulling speed: 5km/h

Max reverse pulling force: 2x35kN
Pull at max speed: 2x20kN
Main configuration

Engine: Cummins

Speed reducer: German Rexroth / Italy Bonfiglioli

Hydraulic pump: German Rexroth/Dnish Danfoss
Main hydraulic valves: USA Sun / Italy ATOS

Main motor: German Rexroth/French Leduc

Engine

Diesel: 77kw(103hp)

Cooling system: water
Electrical system: 24V
Hydraulic Transmission
The machine is provided with tension presetting system.

The machine can realize step less speed.

Additional Devices
Trailer for towing at max speed of 15 km/h

Lighting system for the trailer

2 hydraulic rope/conductor clamp(extra charge)
Digital speed and meter counter
Swivel guide rope roller

Configuration
Digital speed and meter counter

Hydraulic dynamometers

Hydraulic oil cooling system
Hydraulic power pack to control up to 2 separated drum stands with hydraulic motor
Hydraulic front stabilizer
Grounding connection point



Transmission Line Stringing Equipment 2x40KN Electric Hydraulic Tensioner 0
