Transmission Line Stringing Equipment Hydraulic Cable Line Conductor Tensioner
  • name
  • name

Transmission Line Stringing Equipment Hydraulic Cable Line Conductor Tensioner

MOQ: 1set
Price: USD57,500-61,000/set
Standard Packaging: Container
Delivery Period: 15-35days
Supply Capacity: 10Sets/Month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
HANYU
Certification
ISO9001
Model Number
TY2x40-1800
Type:
Hydraulic Cable Line Conductor Tensioner
Max Continuous Tension:
2x40kN
Max Reverse Pulling Force:
2x35kN
Max Conductor Diameter:
40mm
Speed At Max Tension:
2.5km/h
Groove Number:
2x5
Highlight:

hydraulic cable tensioner for transmission lines

,

conductor tensioner stringing equipment

,

transmission line hydraulic tensioner equipment

Product Description

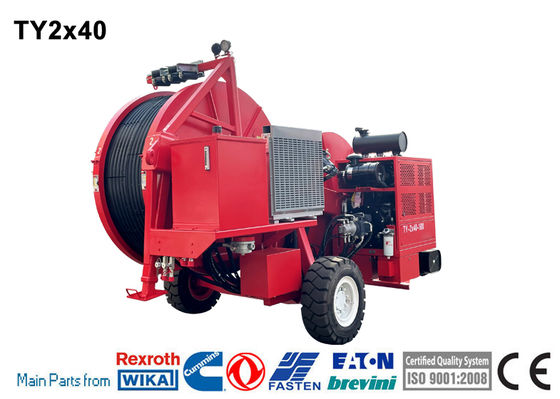

Transmission Line Stringing Equipment Hydraulic Cable Line Conductor Tensioner



TY2x40-1800 Hydraulic Tensioner

  • The machine allows for the tension stringing of twin-bundle conductor of 630mm2 and below in mountainous and hilly areas, of twin-bundle conductor of 720mm2 and below in flat lands, and of conductor 720mm2 in various terrains;
  • Besides, it can be used for tension stringing of OPGW or ADSS optical cable and 500kV haulage rope in various terrains



Performance

Max intermittent tension: 2x45kN
Max continuous tension: 2x40kN
Max speed: 5km/h
Speed at max tension: 2.5km/h
Max reverse pulling force: 2x35kN
Max reverse pulling speed: 5km/h
Pull at max speed: 2x20kN



Characteristics

Bull-wheel diameter: 1800mm
Groove number: 2x5
Overall dimension (length*width*height): 4600×2250×2700mm
Max conductor diameter: 40mm
Total weight: 7790kg



Main configuration

Engine: Cummins
Main motor:German Rexroth/French Leduc
Main hydraulic valves: USA Sun / Italy ATOS
Speed reducer: German Rexroth / Italy Bonfiglioli
Hydraulic pump: German Rexroth/Dnish Danfoss



Engine

Diesel: 77kw(103hp)
Electrical system: 24V
Cooling system: water



Hydraulic Transmission

The machine can realize step less speed.
The machine is provided with tension presetting system.



Additional Devices

Lighting system for the trailer
Trailer for towing at max speed of 15 km/h
2 hydraulic rope/conductor clamp(extra charge)
Digital speed and meter counter
Swivel guide rope roller



Configuration

Hydraulic dynamometers
Hydraulic front stabilizer
Hydraulic power pack to control up to 2 separated drum stands with hydraulic motor
Hydraulic oil cooling system
Grounding connection point
Digital speed and meter counter



Transmission Line Stringing Equipment Hydraulic Cable Line Conductor Tensioner 0
