Name: Stringing Equipment TY2x40-1800 Hydraulic Wire Cable Tension Machine
Brand: Wuxi Hanyu power equipment co.,ltd
SKU: TY2x40-1800
Price: 59.00 USD
Availability: InStock

MOQ:	1set
Price:	USD57,500-61,000/set
Standard Packaging:	Container
Delivery Period:	15-35days
Supply Capacity:	10Sets/Month

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

HANYU

Certification

ISO9001

Model Number

TY2x40-1800

Type:

Hydraulic Wire Cable Tension Machine

Max Continuous Tension:

2x40kN

Diesel:

77kw(103hp)

Cooling System:

Water

Electrical System:

24V

Engine:

Cummins

Highlight:

hydraulic wire tension machine

cable stringing equipment TY2x40-1800

transmission line cable tensioner

Product Description

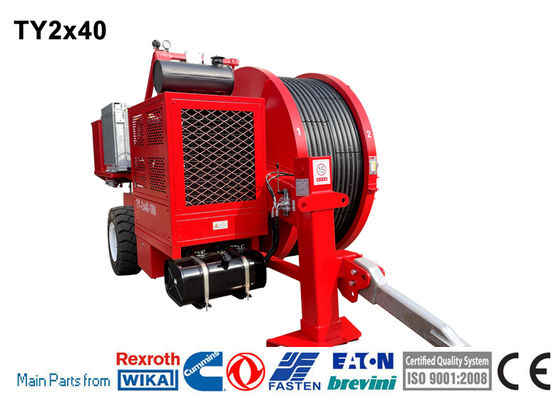

Stringing Equipment TY2x40-1800 Hydraulic Wire Cable Tension Machine

TY2x40-1800 Hydraulic Tensioner	The machine allows for the tension stringing of twin-bundle conductor of 630mm2 and below in mountainous and hilly areas, of twin-bundle conductor of 720mm2 and below in flat lands, and of conductor 720mm2 in various terrains;
	Besides, it can be used for tension stringing of OPGW or ADSS optical cable and 500kV haulage rope in various terrains

Performance	Max intermittent tension: 2x45kN
	Max continuous tension: 2x40kN
	Max speed: 5km/h
	Speed at max tension: 2.5km/h
	Max reverse pulling force: 2x35kN
	Max reverse pulling speed: 5km/h
	Pull at max speed: 2x20kN

Characteristics	Bull-wheel diameter: 1800mm
	Groove number: 2x5
	Overall dimension (lengthwidthheight): 4600×2250×2700mm
	Max conductor diameter: 40mm
	Total weight: 7790kg

Main configuration	Engine: Cummins
	Main motor:German Rexroth/French Leduc
	Main hydraulic valves: USA Sun / Italy ATOS
	Speed reducer: German Rexroth / Italy Bonfiglioli
	Hydraulic pump: German Rexroth/Dnish Danfoss

Engine	Diesel: 77kw(103hp)
	Electrical system: 24V
	Cooling system: water

Hydraulic Transmission	The machine can realize step less speed.
	The machine is provided with tension presetting system.

Additional Devices	Lighting system for the trailer
	Trailer for towing at max speed of 15 km/h
	2 hydraulic rope/conductor clamp(extra charge)
	Digital speed and meter counter
	Swivel guide rope roller

Configuration	Hydraulic dynamometers
	Hydraulic front stabilizer
	Hydraulic power pack to control up to 2 separated drum stands with hydraulic motor
	Hydraulic oil cooling system
	Grounding connection point
	Digital speed and meter counter

Stringing Equipment TY2x40-1800 Hydraulic Wire Cable Tension Machine 0
