Name: 2x70/1x140kN Hydraulic Wire Tensioner/Cable Pulling Hydraulic Tensioner
Brand: Wuxi Hanyu power equipment co.,ltd
SKU: TY2x70IV
Price: 95.00 USD
Availability: InStock

MOQ:	1set
Price:	USD94,000-97,000/set
Standard Packaging:	Container
Delivery Period:	15-35days
Payment Method:	L/C, T/T
Supply Capacity:	10Sets/Month

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

HANYU

Certification

ISO9001

Model Number

TY2x70IV

Type:

Hydraulic Cable Wire Tensioner

Pull At Max Speed:

2x25/1x50kN

Max Intermittent Tension:

2x70/1x140kN

Hydraulic Wire Tensioner:

2*60kN/1*120kN

Bull-wheel Diameter:

1500mm

Max Conductor Diameter:

40mm

Highlight:

hydraulic wire tensioner 70kN

cable pulling tensioner 140kN

transmission line hydraulic tensioner

Product Description

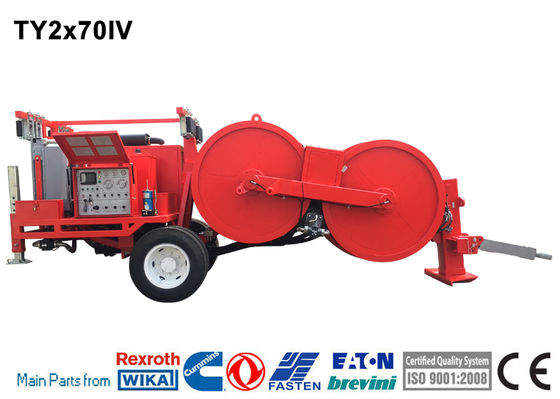

2x70/1x140kN Hydraulic Wire Tensioner/Cable Pulling Hydraulic Tensioner

Performance

Max intermittent tension: 2x70/1x140kN
Max continuous tension: 2x65/1x130kN
Speed at max tension: 2.5km/h
Max speed: 5km/h
Pull at max speed: 2x25/1x50kN
Max reverse pulling force: 2*60kN/1*120kN
Max reverse pulling speed: 5km/h

Main configuration

Engine: Cummins
Hydraulic pump: German Rexroth/Dnish Danfoss
Main motor:German Rexroth/French Leduc
Speed reducer: German Rexroth / Italy Bonfiglioli
Main hydraulic valves: USA Sun / Italy ATOS

Engine

Diesel: 77kw(103hp)
Cooling system: water
Electrical system: 24V

Characteristics

Bull-wheel diameter: 1500mm
Max conductor diameter: 40mm
Groove number: 2x8
Total weight: 12000kg
Overall dimension (length*width*height):
5500*2280*2700mm

Hydraulic Transmission

The machine can realize step less speed.
The machine is provided with tension presetting system.

Configuration

2 negative self-acting hydraulic brakes
2 hydraulic dynamometers
Hydraulic oil cooling system
2 digital meter and speed counters
Control instruments for hydraulic system and diesel engine
Hydraulic front stabilizer
Hydraulic power pack to control up to 4 separate drum stands with hydraulic motor
Grounding connection point

Additional Devices

Lighting system for the trailer
4 hydraulic rope/conductor clamp (extra charge)
Swivel guide rope roller
Air brake system for the trailer (extra charge)
Digital Speed and meter counter

2x70/1x140kN Hydraulic Wire Tensioner/Cable Pulling Hydraulic Tensioner 0
