2x70/1x140kN Stringing Equipment Tension Machine For Overhead Line
  • name
  • name

2x70/1x140kN Stringing Equipment Tension Machine For Overhead Line

MOQ: 1set
Price: USD94,000-97,000/set
Standard Packaging: Container
Delivery Period: 15-35days
Payment Method: L/C, T/T
Supply Capacity: 10Sets/Month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
HANYU
Certification
ISO9001
Model Number
TY2x70IV
Type:
Stringing Equipment Tension Machine
Pull At Max Speed:
2x25/1x50kN
Groove Number:
2x8
Bull-wheel Diameter:
1500mm
Max Conductor Diameter:
40mm
Max Intermittent Tension:
2x70/1x140kN
Highlight:

overhead line tension machine

,

stringing equipment for transmission lines

,

70kN 140kN stringing machine

Product Description

2x70/1x140kN Stringing Equipment Tension Machine For Overhead Line



Performance
  1. Max intermittent tension: 2x70/1x140kN
  2. Max continuous tension: 2x65/1x130kN
  3. Pull at max speed: 2x25/1x50kN
  4. Max speed: 5km/h
  5. Max reverse pulling force: 2*60kN/1*120kN
  6. Max reverse pulling speed: 5km/h
  7. Speed at max tension: 2.5km/h



Characteristics
  1. Max conductor diameter: 40mm
  2. Groove number: 2x8
  3. Bull-wheel diameter: 1500mm
  4. Overall dimension (length*width*height):5500*2280*2700mm
  5. Total weight: 12000kg

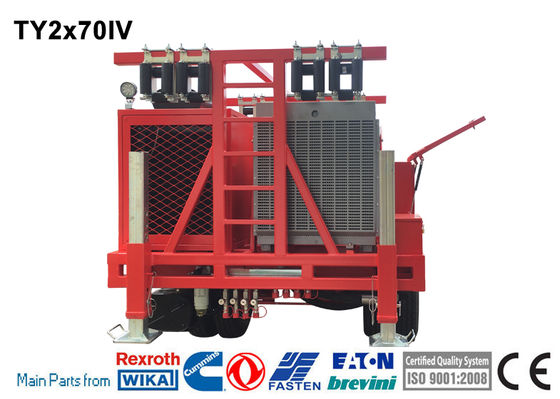

TY2x70IV Hydraulic Tensioner
  • The machine allows for the tension stringing of four-bundle conductor of 630mm2 and below in mountainous and hilly areas, of twin-bundle conductor of 720mm2 and below in flat lands, and of conductor 720mm2 in various terrains;
  • Besides, it can be used for tension stringing of OPGW or ADSS optical cable and 500kV haulage rope in various terrains



Engine
  1. Diesel: 77kw(103hp)
  2. Electrical system: 24V
  3. Cooling system: water



Main configuration
  1. Speed reducer: German Rexroth / Italy Bonfiglioli
  2. Main motor:German Rexroth/French Leduc
  3. Main hydraulic valves: USA Sun / Italy ATOS
  4. Hydraulic pump: German Rexroth/Dnish Danfoss
  5. Engine: Cummins



Configuration
  • Hydraulic oil cooling system
  • 2 negative self-acting hydraulic brakes
  • Grounding connection point
  • 2 digital meter and speed counters
  • Hydraulic front stabilizer
  • 2 hydraulic dynamometers
  • Control instruments for hydraulic system and diesel engine
  • Hydraulic power pack to control up to 4 separate drum stands with hydraulic motor



Hydraulic Transmission
  • The machine can realize step less speed.
  • The machine is provided with tension presetting system.



Additional Devices
  • Air brake system for the trailer (extra charge)
  • Lighting system for the trailer
  • Digital Speed and meter counter
  • Swivel guide rope roller
  • 4 hydraulic rope/conductor clamp (extra charge)



2x70/1x140kN Stringing Equipment Tension Machine For Overhead Line 0
