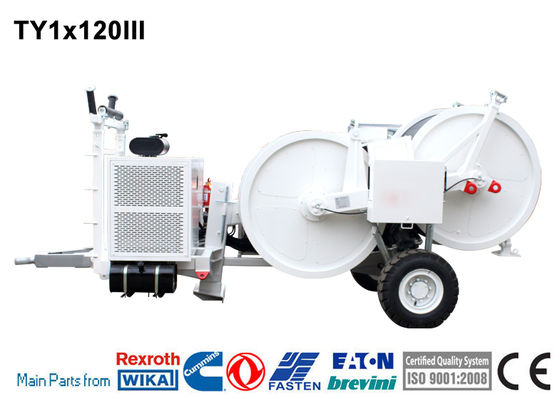

Name: Transmission Line Stringing Equipment TY1X120III Hydraulic Cable Tensioner
Brand: Wuxi Hanyu power equipment co.,ltd
SKU: TY1X120III
Price: 37.00 USD
Availability: InStock

MOQ:	1set
Price:	USD74,500.00-79,000.00/Set
Standard Packaging:	Container
Delivery Period:	15-35days
Payment Method:	L/C, T/T
Supply Capacity:	10Sets/Month

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

HANYU

Certification

ISO9001

Model Number

TY1X120III

Type:

TY1X120III Hydraulic Cable Tensioner

Bull-wheel Diameter:

1500mm

Pull At Max Speed:

1x50kN

Max Continuous Tension:

1x120kN

Max Intermittent Tension:

1x130kN

Total Weight:

8500kg

Highlight:

hydraulic cable tensioner for transmission lines

TY1X120III cable tensioner

transmission line stringing equipment with warranty

Product Description

Transmission Line Stringing Equipment TY1X120III Hydraulic Cable Tensioner

Performance	Max intermittent tension	1x130kN
	Max continuous tension	1x120kN
	Max speed	5km/h
	Speed at max tension	2.5km/h
	Max reverse pulling force	1x90kN
	Pull at max speed	1x50kN

Characteristics	Max conductor diameter	40mm
	Total weight	8500kg
	Groove number	12
	Bull-wheel diameter	1500mm
	Overall dimension (lengthwidthheight)	5200×2300×2700mm

Main configuration	Hydraulic pump	German Rexroth/Dnish Danfoss
	Speed reducer	German Rexroth / Italy Bonfiglioli
	Main motor	German Rexroth/French Leduc
	Engine	Cummins
	Main hydraulic valves	USA Sun / Italy ATOS

Engine	Diesel	77kw(103hp)
	Cooling system	water
	Electrical system	24V

TY1X120III Hydraulic Tensioner	The machine allows for the tension stringing of triple-bundle conductor of 630mm² and below in mountainous and hilly areas, of triple-bundle conductor of 720mm² and below in flat lands, and of conductor 720mm² in various terrains;
	Besides, it can be used for tension stringing of OPGW or ADSS optical cable and 500kV haulage rope in various terrains

Hydraulic Transmission	The machine can realize step less speed.
	The machine is provided with tension presetting system.

Configuration	Digital speed meters
	Hydraulic dynamometers
	Hydraulic oil cooling system
	Hydraulic front stabilizer
	Grounding connection point
	Hydraulic power pack to control up to 3 separated drum stands with hydraulic motor.
	Control instruments for hydraulic system and diesel engine
	Digital meter counters

Additional Devices	3 hydraulic conductor clamps for drum change operations (extra charge)
	Lighting system for the trailer
	Digital speed and meter counter
	Air brake system for the trailer(extra charge)

Transmission Line Stringing Equipment TY1X120III Hydraulic Cable Tensioner 0
