Name: Stringing Equipment Fully Automatic Electrical Conductor Tensioner
Brand: Wuxi Hanyu power equipment co.,ltd
SKU: TY1X120III
Price: 37.00 USD
Availability: InStock

MOQ:	1set
Price:	USD74,500.00-79,000.00/Set
Standard Packaging:	Container
Delivery Period:	15-35days
Payment Method:	L/C, T/T
Supply Capacity:	10Sets/Month

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

HANYU

Certification

ISO9001

Model Number

TY1X120III

Type:

Fully Automatic Electrical Conductor Tensioner

Max Continuous Tension:

1x120kN

Pull At Max Speed:

1x50kN

Max Conductor Diameter:

40mm

Bull-wheel Diameter:

1500mm

Diese:

77kw(103hp)

Highlight:

fully automatic conductor tensioner

electrical transmission line stringing equipment

automatic conductor tensioner with warranty

Product Description

Stringing Equipment Fully Automatic Electrical Conductor Tensioner

Performance

Max intermittent tension: 1x130kN
Max continuous tension: 1x120kN
Max reverse pulling force: 1x90kN
Max speed: 5km/h
Pull at max speed: 1x50kN
Speed at max tension: 2.5km/h

Characteristics

Max conductor diameter: 40mm
Bull-wheel diameter: 1500mm
Groove number: 12
Overall dimension (length*width*height): 5200×2300×2700mm
Total weight: 8500kg

Engine

Diesel 77kw(103hp)
Cooling system water
Electrical system 24V

Main configuration

Hydraulic pump: German Rexroth/Dnish Danfoss
Main hydraulic valves: USA Sun / Italy ATOS
Speed reducer: German Rexroth / Italy Bonfiglioli
Engine: Cummins
Main motor:German Rexroth/French Leduc

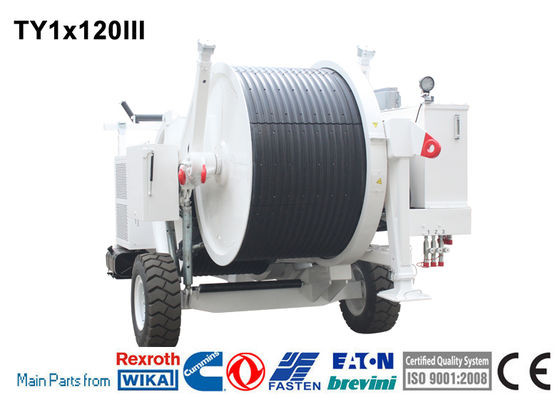

TY1X120III Hydraulic Tensioner

The machine allows for the tension stringing of triple-bundle conductor of 630mm2 and below in mountainous and hilly areas, of triple-bundle conductor of 720mm2 and below in flat lands, and of conductor 720mm2 in various terrains;
Besides, it can be used for tension stringing of OPGW or ADSS optical cable and 500kV haulage rope in various terrains

Additional Devices

Digital speed and meter counter
Air brake system for the trailer(extra charge)
Lighting system for the trailer
3 hydraulic conductor clamps for drum change operations (extra charge)

Hydraulic Transmission

The machine can realize step less speed.
The machine is provided with tension presetting system.

Configuration

Digital speed meters
Control instruments for hydraulic system and diesel engine
Hydraulic oil cooling system
Hydraulic dynamometers
Digital meter counters
Hydraulic power pack to control up to 3 separated drum stands with hydraulic motor
Grounding connection point
Hydraulic front stabilizer

Stringing Equipment Fully Automatic Electrical Conductor Tensioner 0

Professional and excellent service team

Hanyu always takes the market as the guide, makes continuous efforts and improvements, and provides customers with excellent quality products and satisfactory and thoughtful services.
We operate in strict accordance with the management mode of a modern enterprise, with high quality, strong technology, and excellent service as the development direction, and gather the entire technical team to create value for the enterprise and customers.
With the enterprise spirit of "pursuing excellence", we will continue to innovate and manufacture high-quality products. Steadily improve product quality, so that users can be more satisfied.
