Transmission Line Stringing Equipment Hydraulic Cable Tensioner Machine
  • name
  • name

Transmission Line Stringing Equipment Hydraulic Cable Tensioner Machine

MOQ: 1set
Price: USD74,500.00-79,000.00/Set
Standard Packaging: Container
Delivery Period: 15-35days
Payment Method: L/C, T/T
Supply Capacity: 10Sets/Month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
HANYU
Certification
ISO9001
Model Number
TY1X120III
Type:
Hydraulic Cable Tensioner Machine
Max Continuous Tension:
1x120kN
Diese:
77kw(103hp)
Total Weight:
8500kg
Max Conductor Diameter:
40mm
Bull-wheel Diameter:
1500mm
Highlight:

hydraulic cable tensioner machine

,

transmission line stringing equipment

,

cable tensioner with hydraulic system

Product Description

Transmission Line Stringing Equipment Hydraulic Cable Tensioner Machine



Characteristics
  • ​Max conductor diameter: 40mm
  • Bull-wheel diameter: 1500mm
  • Groove number: 12
  • Overall dimension (length*width*height): 5200×2300×2700mm
  • Total weight: 8500kg



Performance
  • Max intermittent tension: 1x130kN
  • Max continuous tension: 1x120kN
  • Max reverse pulling force: 1x90kN
  • Max speed: 5km/h
  • Pull at max speed: 1x50kN
  • Speed at max tension: 2.5km/h



Main configuration
  • Hydraulic pump: German Rexroth/Dnish Danfoss
  • Main hydraulic valves: USA Sun / Italy ATOS
  • Speed reducer: German Rexroth / Italy Bonfiglioli
  • Engine: Cummins
  • Main motor:German Rexroth/French Leduc



Engine
  • Diesel 77kw(103hp)
  • Cooling system water
  • Electrical system 24V

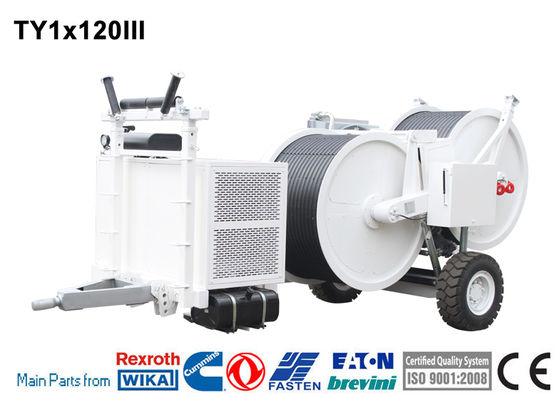

TY1X120III Hydraulic Tensioner
  • The machine allows for the tension stringing of triple-bundle conductor of 630mm2 and below in mountainous and hilly areas, of triple-bundle conductor of 720mm2 and below in flat lands, and of conductor 720mm2 in various terrains;
  • Besides, it can be used for tension stringing of OPGW or ADSS optical cable and 500kV haulage rope in various terrains



Configuration
  • Digital speed meters
  • Control instruments for hydraulic system and diesel engine
  • Hydraulic oil cooling system
  • Hydraulic dynamometers
  • Digital meter counters
  • Hydraulic power pack to control up to 3 separated drum stands with hydraulic motor
  • Grounding connection point
  • Hydraulic front stabilizer



Additional Devices
  • Digital speed and meter counter
  • Air brake system for the trailer(extra charge)
  • Lighting system for the trailer
  • 3 hydraulic conductor clamps for drum change operations (extra charge)



Hydraulic Transmission
  • The machine can realize step less speed.
  • The machine is provided with tension presetting system.



Transmission Line Stringing Equipment Hydraulic Cable Tensioner Machine 0
