Transmission Line Stringing Equipment Tension Stringing 30kN Hydraulic Tensioner
  • name
  • name

Transmission Line Stringing Equipment Tension Stringing 30kN Hydraulic Tensioner

MOQ: 1set
Price: USD23,000.00-25,000.00/set
Standard Packaging: Container
Delivery Period: 15-35days
Payment Method: L/C, T/T
Supply Capacity: 10sets/month.
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
HANYU
Certification
ISO9001
Model Number
TY1x30D-1800
Type:
Tension Stringing 30kN Hydraulic Tensioner
Max Continuous Tension:
30kN
Pull At Max Speed:
15kN
Speed At Max Tension:
2.5km/h
Total Weight:
4600kg
Overall Dimension (length*width*height):
5000*2000*2600mm
Highlight:

30kN hydraulic tensioner for transmission lines

,

transmission line stringing equipment with warranty

,

tension stringing equipment for power lines

Product Description

Transmission Line Stringing Equipment Tension Stringing 30kN Hydraulic Tensioner

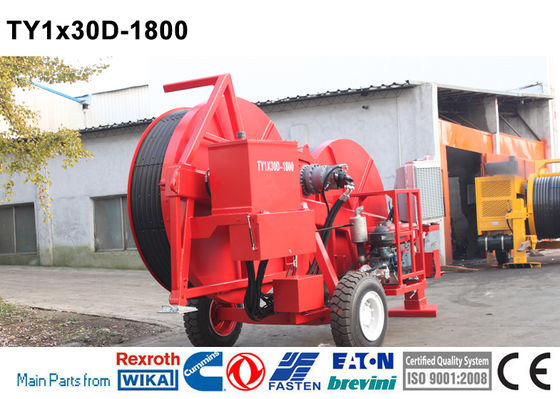

TY1x30D-1800 Hydraulic Tensioner
  • The machine is hydraulically controlled for the tensile force and complete with quality parts and components such as hydraulic break, high-performance finned radiator, hydraulic power unit, precision filtering unit to support the safe, high-quality and efficient performance.
  • The single-beam trailer chassis is also adopted, where lifting points are pre-set for anchoring and temporary anchoring, to achieve a portable compact integrity easy to be loaded, transported and transferred.
  • The hydraulic power unit provides the traction of conductors at both positive and negative directions.



Performance
  • Max continuous tension: 30kN
  • Max speed: 5km/h
  • Max reverse pulling force: 20kN
  • Speed at max tension: 2.5km/h
  • Pull at max speed: 15kN



Characteristics
  • Bull-wheel diameter: 1800mm
  • Groove number: 5
  • Max conductor diameter: 40mm
  • Overall dimension (length*width*height): 5000*2000*2600mm
  • Total weight: 4600kg



Main configuration
  • Engine: Changchai China
  • Main motor: French Leduc
  • Hydraulic valve: German Rexroth
  • Hydraulic pump: German Concentric
  • Hydraulic meter: German WIKA
  • Speed reducer: German Rexroth / Italy Bonfiglioli



Additional Devices
  • Air brake system for the trailer (extra charge)
  • Swivel guide rope roller
  • Trailer for towing at max speed of 15 km/h
  • Hydraulic conductor clamps for drum change operations (extra charge)



Configuration
  • Hydraulic dynamometers
  • Grounding connection point
  • Hydraulic oil cooling system



Hydraulic Transmission
  • The machine is provided with tension presetting system
  • The machine can realize step less speed



Engine
  • Electrical system 12V
  • Single cylinder diesel engine 18kw(25hp)



Transmission Line Stringing Equipment Tension Stringing 30kN Hydraulic Tensioner 0
