Name: TYCVC-201 26kN Reel Cradle Elevator Transmission Line Stringing Tools
Brand: Wuxi Hanyu power equipment co.,ltd
SKU: TYCVC-201
Availability: InStock

MOQ:	20pieces
Price:	Negotiable
Standard Packaging:	Container
Delivery Period:	15-35days
Payment Method:	L/C, T/T
Supply Capacity:	1000pieces/month.

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

HANYU

Certification

ISO9001

Model Number

TYCVC-201

Mass:

150kg

Dimensions(A):

3020mm

Dimensions(B):

1060mm

Dimensions(C):

1130mm

Capacity:

26kN

Type:

TYCVC-201 Cradle Reel Elevators

Highlight:

26kN Reel Cradle Elevator

TYCVC-201 Cradle Elevator

Cradle Elevator Transmission Line Stringing Tools

Product Description

Transmission Line Stringing Tools TYCVC-201 26kN Cradle Reel Elevators

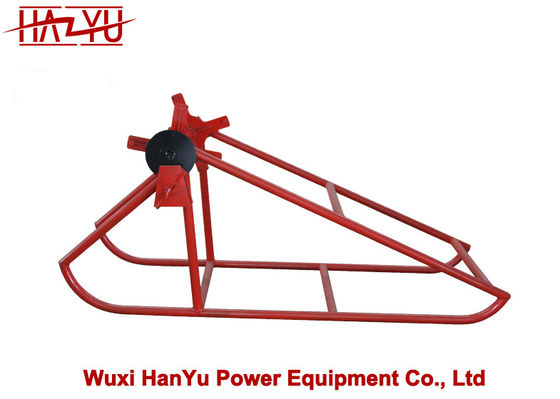

TYCVC Cradle Reel Elevators
The Cradle reel elevators are made of welded steel with a protective coating.
It is suitable to string traction rope and guide rope, with a disc brake, it have 0-150kg tension, can be used for tension stringing, when you stop to string, the reel will be stopped automatically.
Model	Dimensions (mm)					Capacity	Mass
Model	A	B	C	D min	D max	KN	kg
TYCVC-002	2550	1325	1060	1100	1400	20	58
TYCVC-201	3020	1060	1130		1900	26	150
TYCVC-004	2015	1442	1380		1400	30	390
Additional Devices
Disk brake device

TYCVC-201 26kN Reel Cradle Elevator Transmission Line Stringing Tools 0
