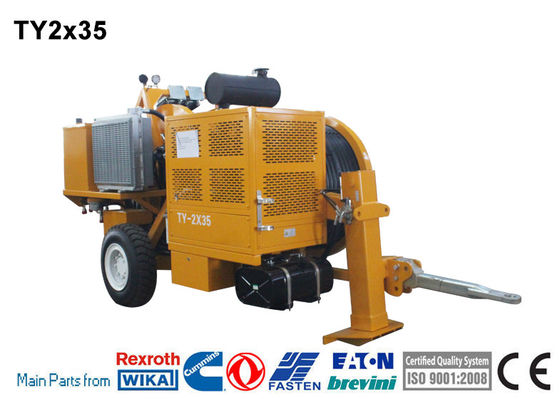

Name: 2x40kN Hydraulic Cable Tensioner Transmission Line Stringing Equipment
Brand: Wuxi Hanyu power equipment co.,ltd
SKU: TY2x35
Availability: InStock

MOQ:	1set
Price:	Negotiable
Standard Packaging:	Container
Delivery Period:	15-35days
Payment Method:	L/C, T/T
Supply Capacity:	10 Sets/Month

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

HANYU

Certification

ISO9001

Model Number

TY2x35

Type:

2x40kN Hydraulic Tensioner

Max Continuous Tension:

2x35kN

Max Reverse Pulling Speed:

5km/h

Speed At Max Tension:

2.5km/h

Cooling System:

Water

Diesel:

77kw(103hp)

Highlight:

2x40kN Hydraulic Cable Tensioner

2x40kN Hydraulic wire Tensioner

2x40kN Hydraulic Tensioner

Product Description

Transmission Line Stringing Tools Max Intermittent Tension 2x40kN Hydraulic Tensioner

TY2x35 Hydraulic Tensioner	The machine allows for the tension stringing of twin-bundle conductor of 630mm² and below in mountainous and hilly areas, of twin-bundle conductor of 720mm² and below in flat lands, and of conductor 720mm² in various terrains; besides, it can be used for tension stringing of OPGW or ADSS optical cable and 500kV haulage rope in various terrains
Characteristics	Bull-wheel diameter: 1300mm Max conductor diameter: 40mm Groove number: 2x5 Total weight: 4500kg Overall dimension (lengthwidthheight): 4300×2250×2700mm
Performance	Max intermittent tension: 2x40kN Max continuous tension: 2x35kN Speed at max tension: 2.5km/h Max speed: 5km/h Pull at max speed: 2x20kN Max reverse pulling force: 2x30kN Max reverse pulling speed: 5km/h
Engine	Diesel: 77kw(103hp) Cooling system: water Electrical system: 24V
Main configuration	Engine: Cummins Hydraulic pump: German Rexroth/Dnish Danfoss Main motor: German Rexroth/French Leduc Speed reducer: German Rexroth / Italy Bonfiglioli Main hydraulic valves: USA Sun / Italy ATOS
Additional Devices	Lighting system for the trailer Air brake system for the trailer (extra charge) 2 hydraulic conductor clamps for drum change operations (extra charge) Swivel guide rope roller
Configuration	Hydraulic dynamometers Hydraulic oil cooling system Digital speed and meter counter Grounding connection point Hydraulic power pack to control up to 2 separated drum stands with hydraulic motor
Hydraulic Transmission	The machine can realize step less speed. The machine is provided with tension presetting system.

2x40kN Hydraulic Cable Tensioner Transmission Line Stringing Equipment 0
