2x30kN Hydraulic Cable Tensioner Stringing Equipment For Overhead Power Lines
  • name
  • name

2x30kN Hydraulic Cable Tensioner Stringing Equipment For Overhead Power Lines

MOQ: 1set
Price: Negotiable
Standard Packaging: Container
Delivery Period: 15-35days
Payment Method: L/C, T/T
Supply Capacity: 10 Sets/Month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
HANYU
Certification
ISO9001
Model Number
TY2x35
Type:
Hydraulic Tensioner For Tension Stringing
Max Continuous Tension:
2x35kN
Max Reverse Pulling Force:
2x30kN
Max Reverse Pulling Speed:
5km/h
Speed At Max Tension:
2.5km/h
Highlight:

2x30kN Hydraulic Cable Tensioner

,

Hydraulic Cable Tensioner Stringing Equipment

,

Stringing Equipment For Overhead Power Lines

Product Description

Transmission Line Stringing Tools Hydraulic Tensioner For Tension Stringing

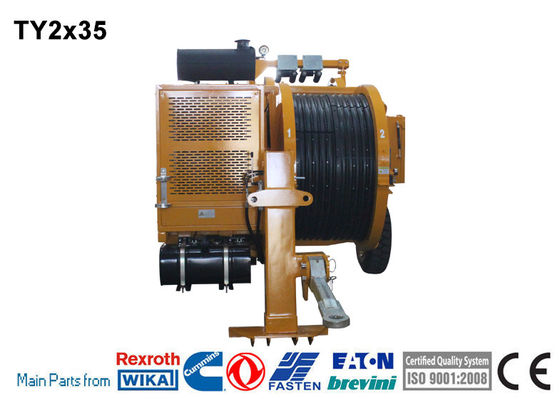

TY2x35 Hydraulic Tensioner
  • The machine allows for the tension stringing of twin-bundle conductor of 630mm2 and below in mountainous and hilly areas, of twin-bundle conductor of 720mm2 and below in flat lands, and of conductor 720mm2 in various terrains;
  • Besides, it can be used for tension stringing of OPGW or ADSS optical cable and 500kV haulage rope in various terrains



Performance

  1. Max intermittent tension: 2x40kN
  2. Max continuous tension: 2x35kN
  3. Pull at max speed: 2x20kN
  4. Speed at max tension: 2.5km/h
  5. Max reverse pulling speed: 5km/h
  6. Max speed: 5km/h
  7. Max reverse pulling force: 2x30kN

Engine

  1. Electrical system 24V
  2. Diesel 77kw(103hp)
  3. Cooling system water

Characteristics

  1. Bull-wheel diameter: 1300mm
  2. Total weight: 4500kg
  3. Groove number: 2x5
  4. Max conductor diameter: 40mm
  5. Overall dimension (length*width*height): 4300×2250×2700mm

Main configuration

  1. Engine: Cummins
  2. Main motor: German Rexroth/French Leduc
  3. Hydraulic pump: German Rexroth/Dnish Danfoss
  4. Main hydraulic valves: USA Sun / Italy ATOS
  5. Speed reducer: German Rexroth / Italy Bonfiglioli

Configuration

  1. Digital speed and meter counter
  2. Hydraulic dynamometers
  3. Hydraulic power pack to control up to 2 separated drum stands with hydraulic motor
  4. Grounding connection point
  5. Hydraulic oil cooling system

Hydraulic Transmission

  1. The machine can realize step less speed.
  2. The machine is provided with tension presetting system.

Additional Devices

  1. Lighting system for the trailer
  2. 2 hydraulic conductor clamps for drum change operations (extra charge)
  3. Air brake system for the trailer (extra charge)
  4. Swivel guide rope roller



2x30kN Hydraulic Cable Tensioner Stringing Equipment For Overhead Power Lines 0
