Conductor Stringing Equipment TY2x70IV Hydraulic Electric Cable Tensioner
  • name
  • name

Conductor Stringing Equipment TY2x70IV Hydraulic Electric Cable Tensioner

MOQ: 1set
Price: USD94,000-97,000/set
Standard Packaging: Container
Delivery Period: 15-35days
Payment Method: L/C, T/T
Supply Capacity: 10Sets/Month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
HANYU
Certification
ISO9001
Model Number
TY2x70IV
Max Intermittent Tension:
2x70/1x140kN
Max Continuous Tension:
2x65/1x130kN
Speed At Max Tension:
2.5km/h
Max Reverse Pulling Speed:
5km/h
Groove Number:
2x8
Type:
Hydraulic Electric Cable Tensioner
Highlight:

hydraulic electric cable tensioner

,

conductor stringing equipment with warranty

,

TY2x70IV cable tensioner for transmission lines

Product Description

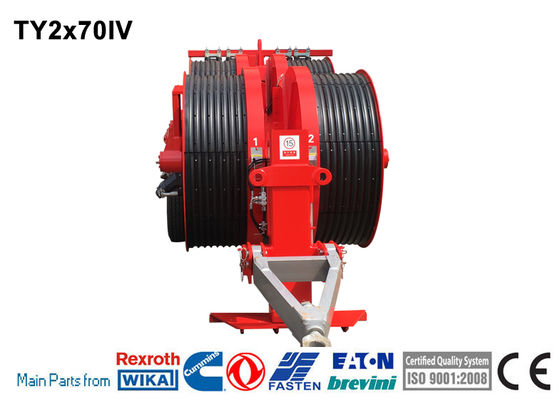

Conductor Stringing Equipment TY2x70IV Hydraulic Electric Cable Tensioner



TY2x70IV Hydraulic Tensioner

The machine allows for the tension stringing of four-bundle conductor of 630mm2 and below in mountainous and hilly areas, of twin-bundle conductor of 720mm2 and below in flat lands, and of conductor 720mm2 in various terrains; besides, it can be used for tension stringing of OPGW or ADSS optical cable and 500kV haulage rope in various terrains
Characteristics
  • Bull-wheel diameter: 1500mm
  • Groove number: 2x8
  • Max conductor diameter: 40mm
  • Total weight: 12000kg
  • Overall dimension (length*width*height):5500*2280*2700mm
Performance
  • Max intermittent tension: 2x70/1x140kN
  • Max continuous tension: 2x65/1x130kN
  • Speed at max tension: 2.5km/h
  • Max speed: 5km/h
  • Max reverse pulling speed: 5km/h
  • Pull at max speed: 2x25/1x50kN
  • Max reverse pulling force: 2*60kN/1*120kN
Main configuration
  • Engine: Cummins
  • Main motor:German Rexroth/French Leduc
  • Hydraulic pump: German Rexroth/Dnish Danfoss
  • Speed reducer: German Rexroth / Italy Bonfiglioli
  • Main hydraulic valves: USA Sun / Italy ATOS
Engine
  • Diesel: 77kw(103hp)
  • Cooling system: water
  • Electrical system: 24V
Hydraulic Transmission
  • The machine can realize step less speed.
  • The machine is provided with tension presetting system.
Configuration
  • 2 negative self-acting hydraulic brakes
  • 2 hydraulic dynamometers
  • 2 digital meter and speed counters
  • Control instruments for hydraulic system and diesel engine
  • Hydraulic front stabilizer
  • Grounding connection point
  • Hydraulic oil cooling system
  • Hydraulic power pack to control up to 4 separate drum stands with hydraulic motor
Additional Devices
  • Lighting system for the trailer
  • Swivel guide rope roller
  • Air brake system for the trailer (extra charge)
  • 4 hydraulic rope/conductor clamp (extra charge)
  • Digital Speed and meter counter
