Transmission Line Stringing Equipment 2x35KN Hydraulic Tension Machine
  • name
  • name

Transmission Line Stringing Equipment 2x35KN Hydraulic Tension Machine

MOQ: 1set
Price: USD48,500.00-51,000.00/Set
Standard Packaging: Container
Delivery Period: 15-35days
Payment Method: L/C, T/T
Supply Capacity: 10Sets/Month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
HANYU
Certification
ISO9001
Model Number
TY2x35
Type:
Hydraulic Tension Machine
Max Continuous Tension:
2x35kN
Bull-wheel Diameter:
1300mm
Pull At Max Speed:
2x20kN
Total Weight:
4500kg
Groove Number:
2x5
Highlight:

2x35KN hydraulic tension machine

,

transmission line stringing equipment with warranty

,

hydraulic tension machine for power lines

Product Description

Transmission Line Stringing Equipment 2x35KN Hydraulic Tension Machine



Characteristics
Bull-wheel diameter: 1300mm
Max conductor diameter: 40mm
Overall dimension (length*width*height): 4300×2250×2700mm
Groove number: 2x5
Total weight: 4500kg



Performance
Max intermittent tension: 2x40kN
Max continuous tension: 2x35kN
Speed at max tension: 2.5km/h
Pull at max speed: 2x20kN
Max speed: 5km/h
Max reverse pulling speed: 5km/h
Max reverse pulling force: 2x30kN



Main configuration
Engine: Cummins
Main hydraulic valves: USA Sun / Italy ATOS
Speed reducer: German Rexroth / Italy Bonfiglioli
Main motor: German Rexroth/French Leduc
Hydraulic pump: German Rexroth/Dnish Danfoss



Engine
Diesel: 77kw(103hp)
Cooling system: water
Electrical system: 24V

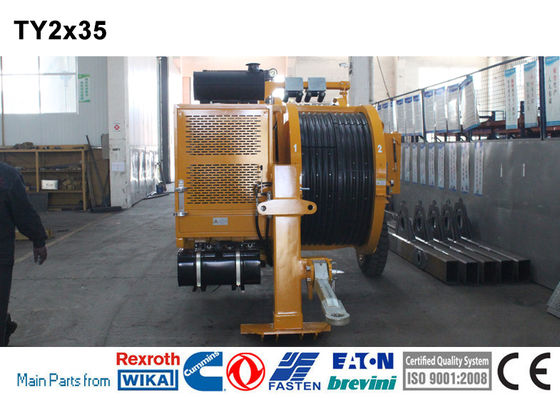

TY2x35 Hydraulic Tensioner

The machine allows for the tension stringing of twin-bundle conductor of 630mm2 and below in mountainous and hilly areas, of twin-bundle conductor of 720mm2 and below in flat lands, and of conductor 720mm2 in various terrains;

Besides, it can be used for tension stringing of OPGW or ADSS optical cable and 500kV haulage rope in various terrains

Additional Devices

Lighting system for the trailer

Swivel guide rope roller

Air brake system for the trailer (extra charge)

2 hydraulic conductor clamps for drum change operations (extra charge)

Hydraulic Transmission

The machine can realize step less speed.

The machine is provided with tension presetting system.

Configuration

Hydraulic power pack to control up to 2 separated drum stands with hydraulic motor

Digital speed and meter counter

Grounding connection point

Hydraulic oil cooling system

Hydraulic dynamometers



Transmission Line Stringing Equipment 2x35KN Hydraulic Tension Machine 0
